3D打印ESP8266智能小车：Wi-Fi网页遥控 + L298N驱动

头像
安分守机
原创
发布时间: 2026-05-23 16:08:43 | 阅读数 0收藏数 0评论数 0
单片机
ESP8266
L298N
TT马达

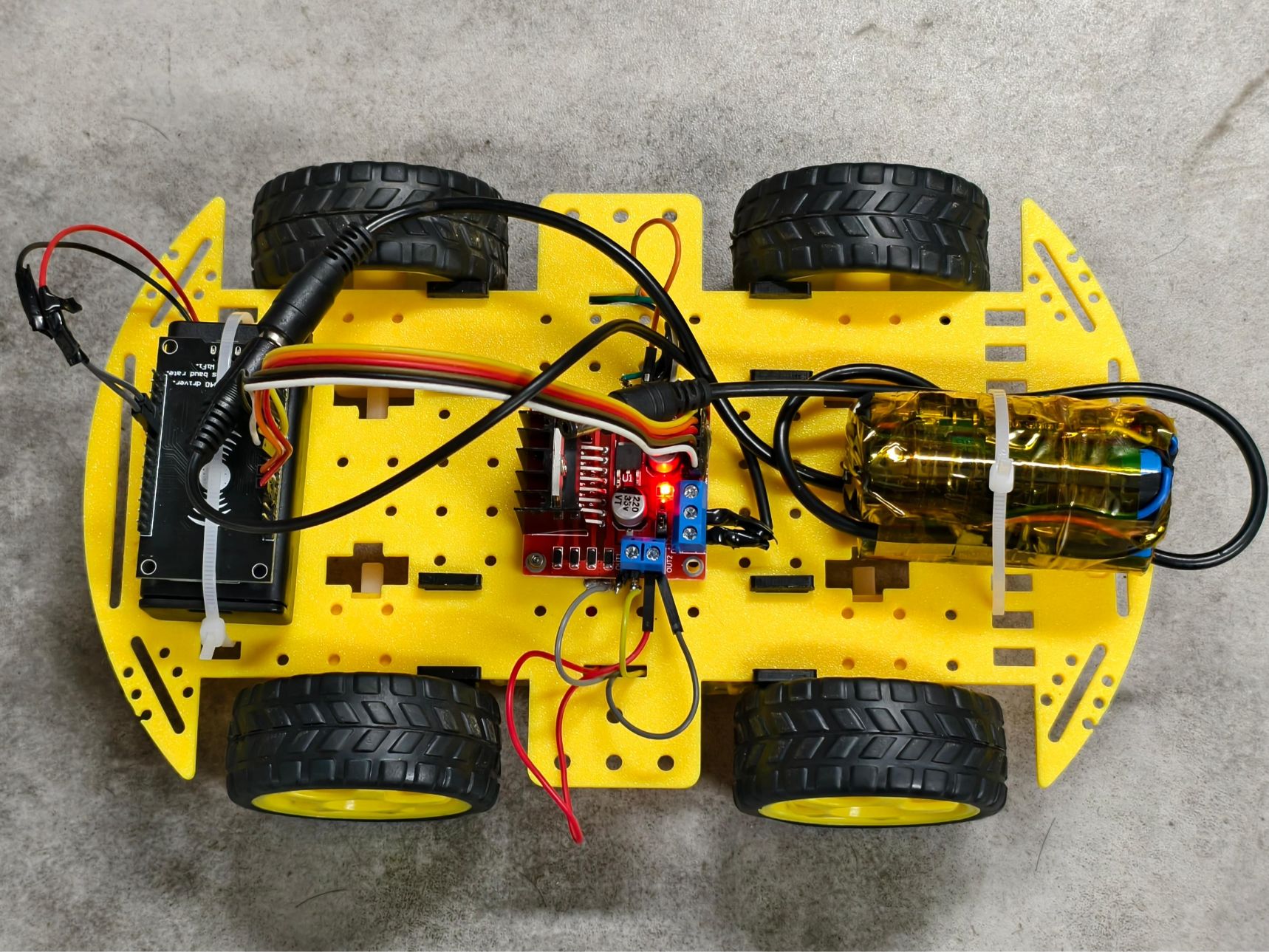

封面
本项目制作了一款由3D打印底盘、ESP8266主控及L298N电机驱动模块组成的无线智能小车。系统采用AP热点模式，用户连接ESP8266后，即可通过网页实时控制小车的运动轨迹。
1

制作底盘以及卡扣

向左
向右
12

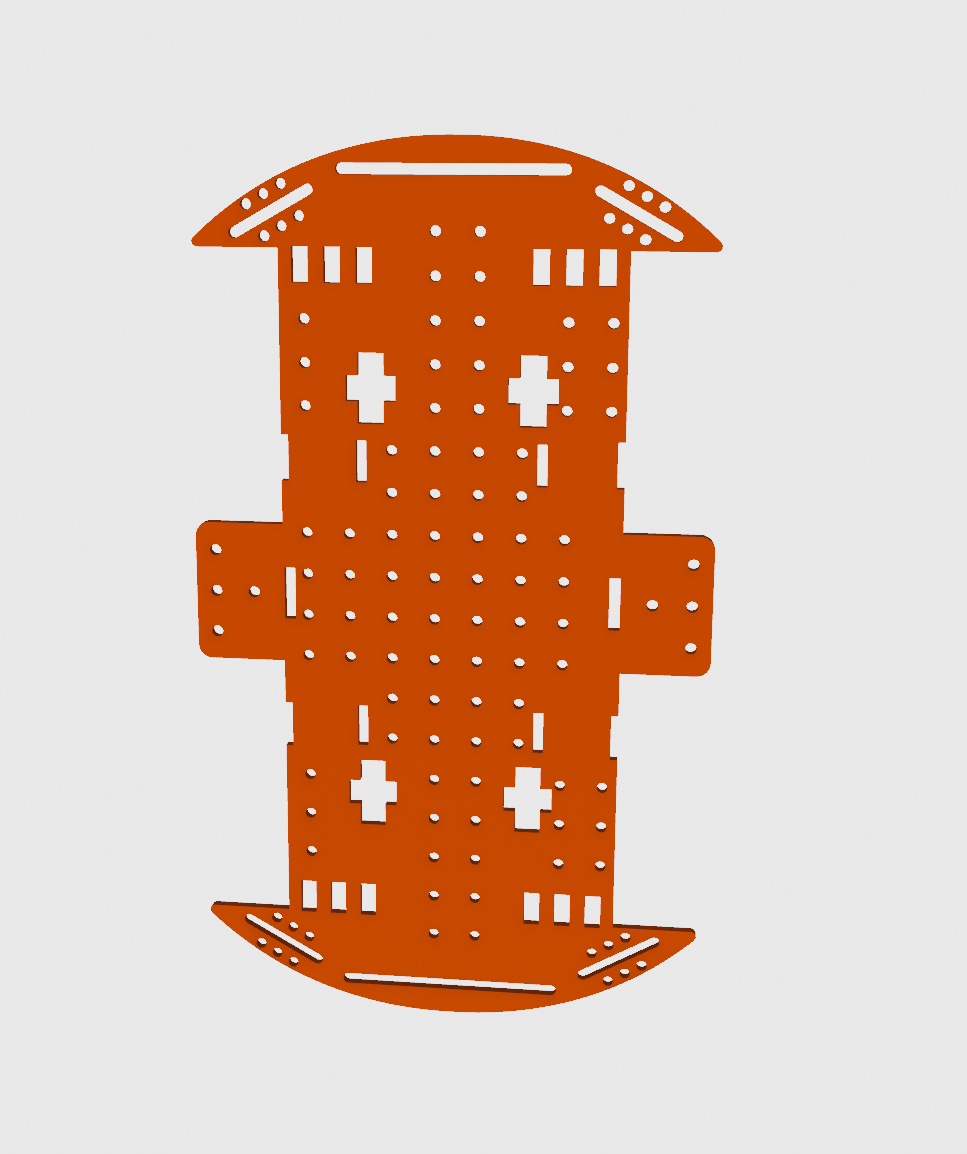

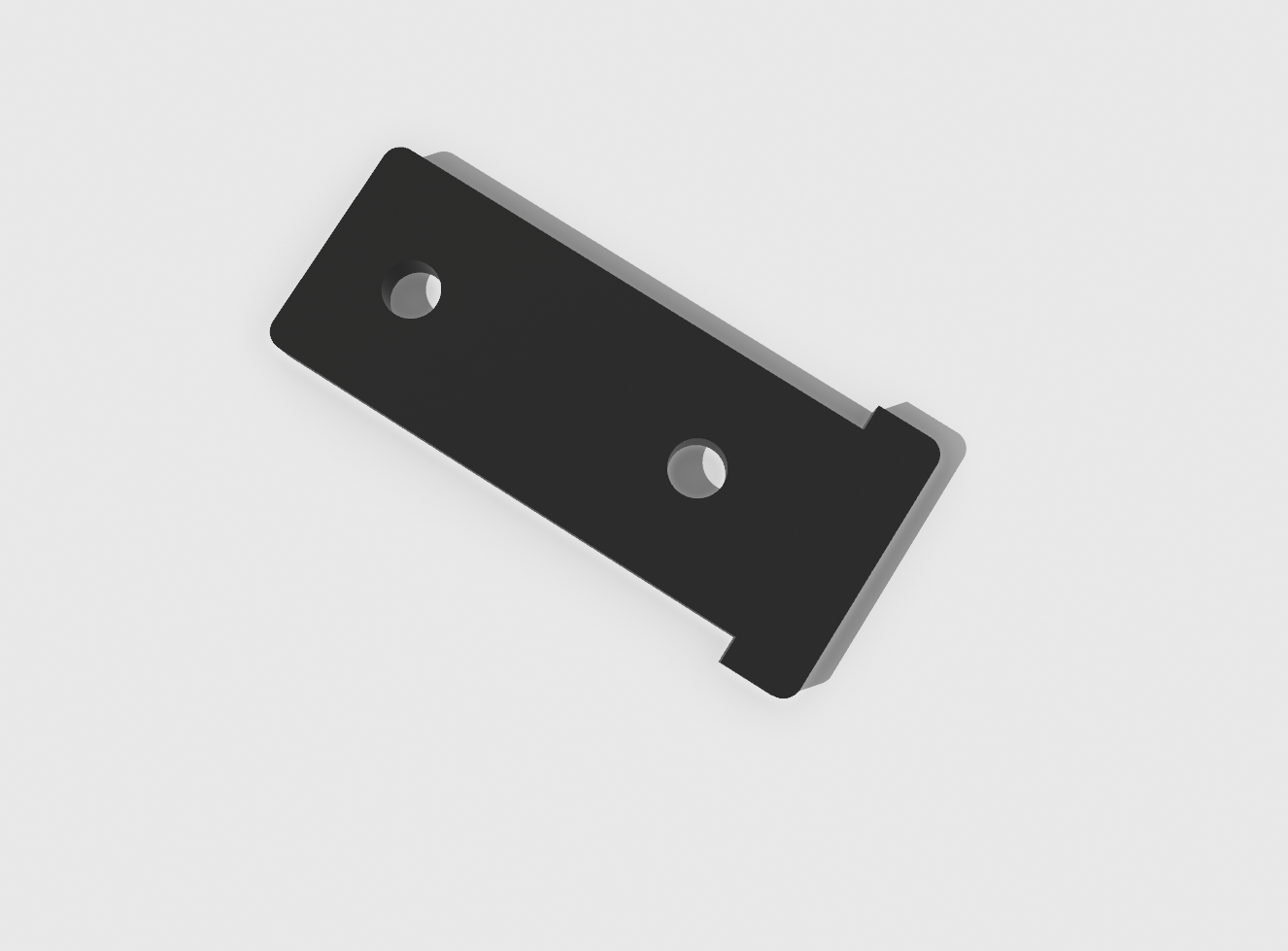

小车底盘和固定马达的图纸放在了附件，自己查看并下载。

STL
马达卡扣.stl
76.06KB
STL
底盘-v1.stl
4.55MB
2

组装马达

向左
向右
12345

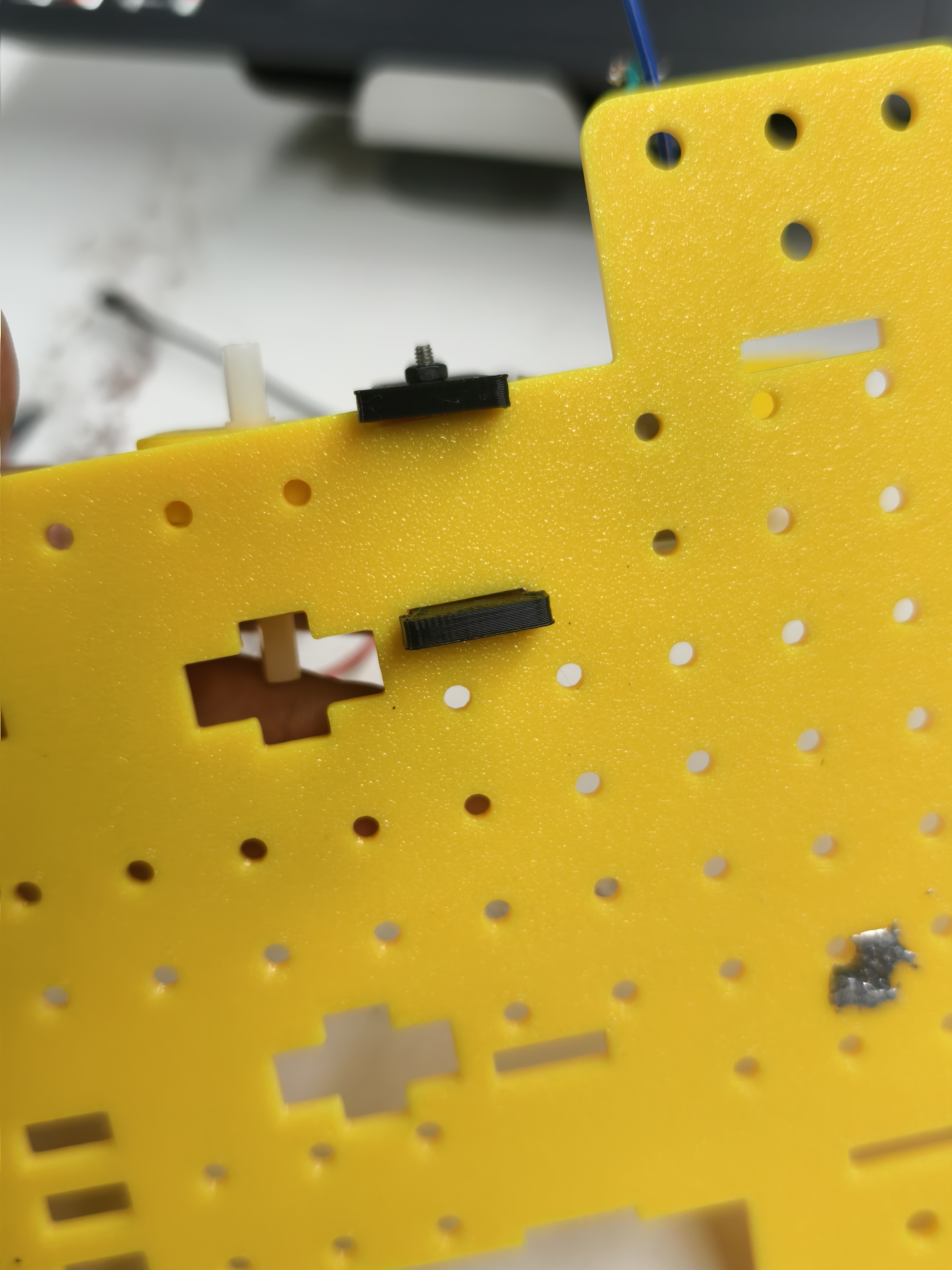

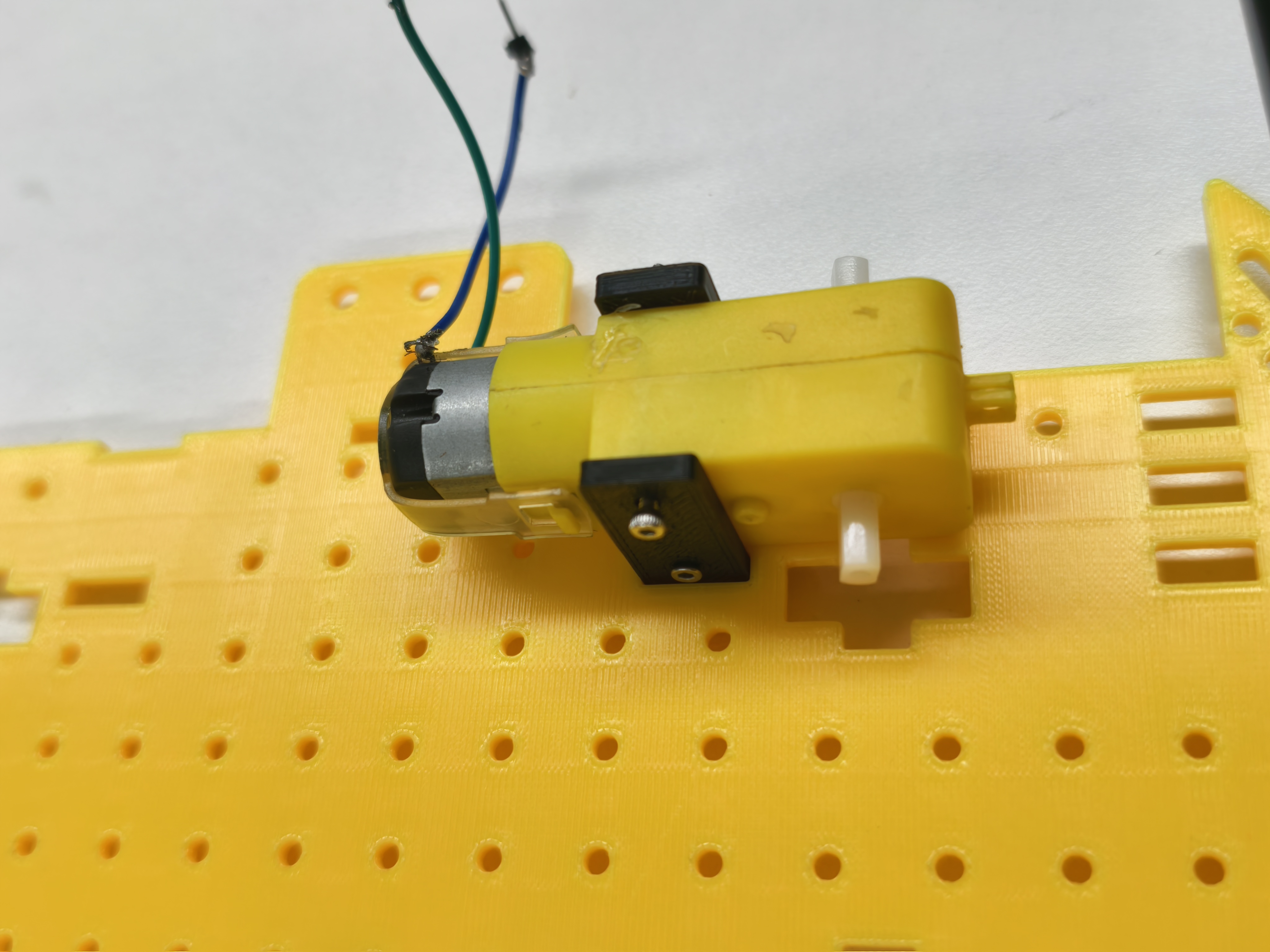

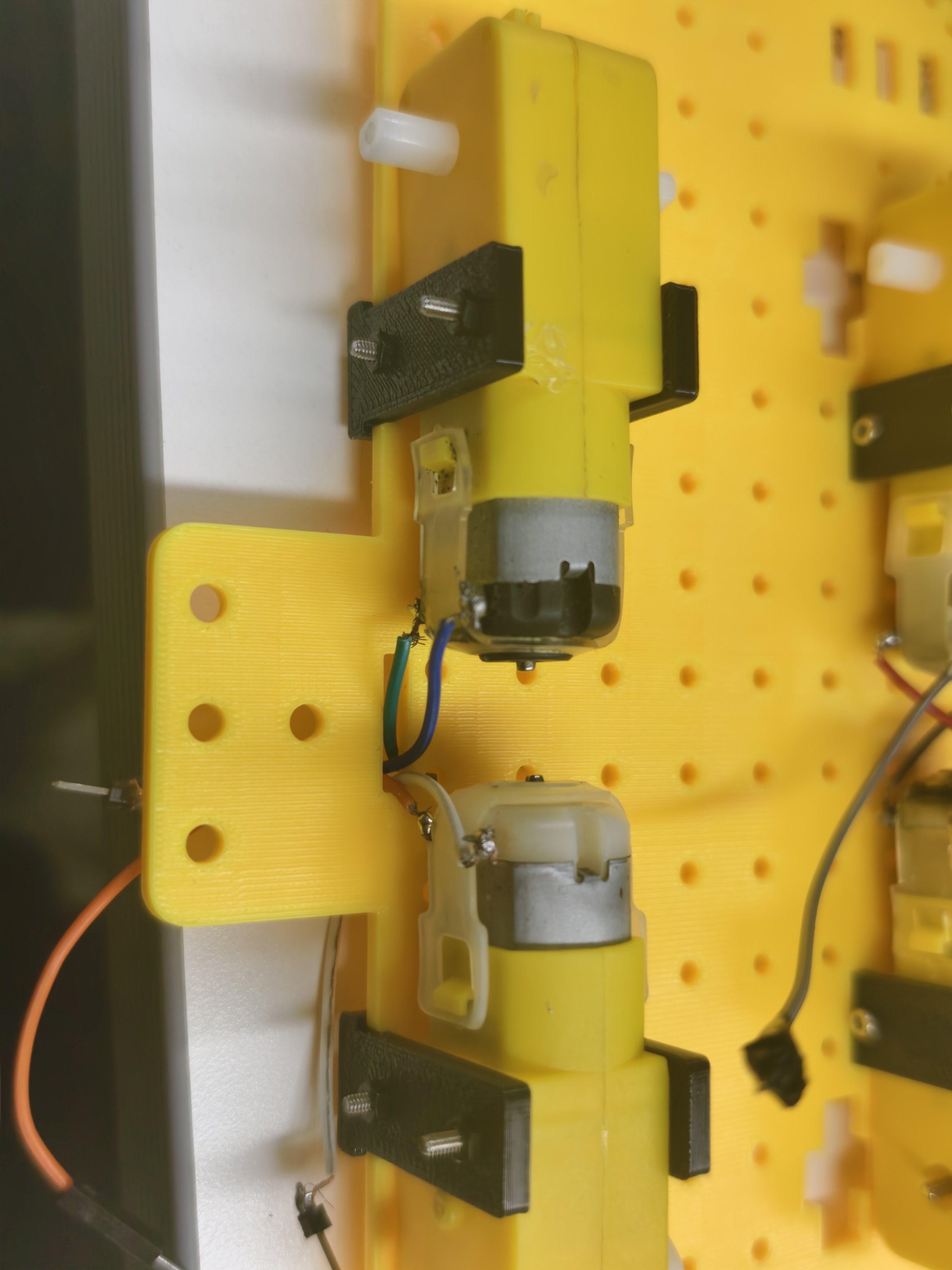

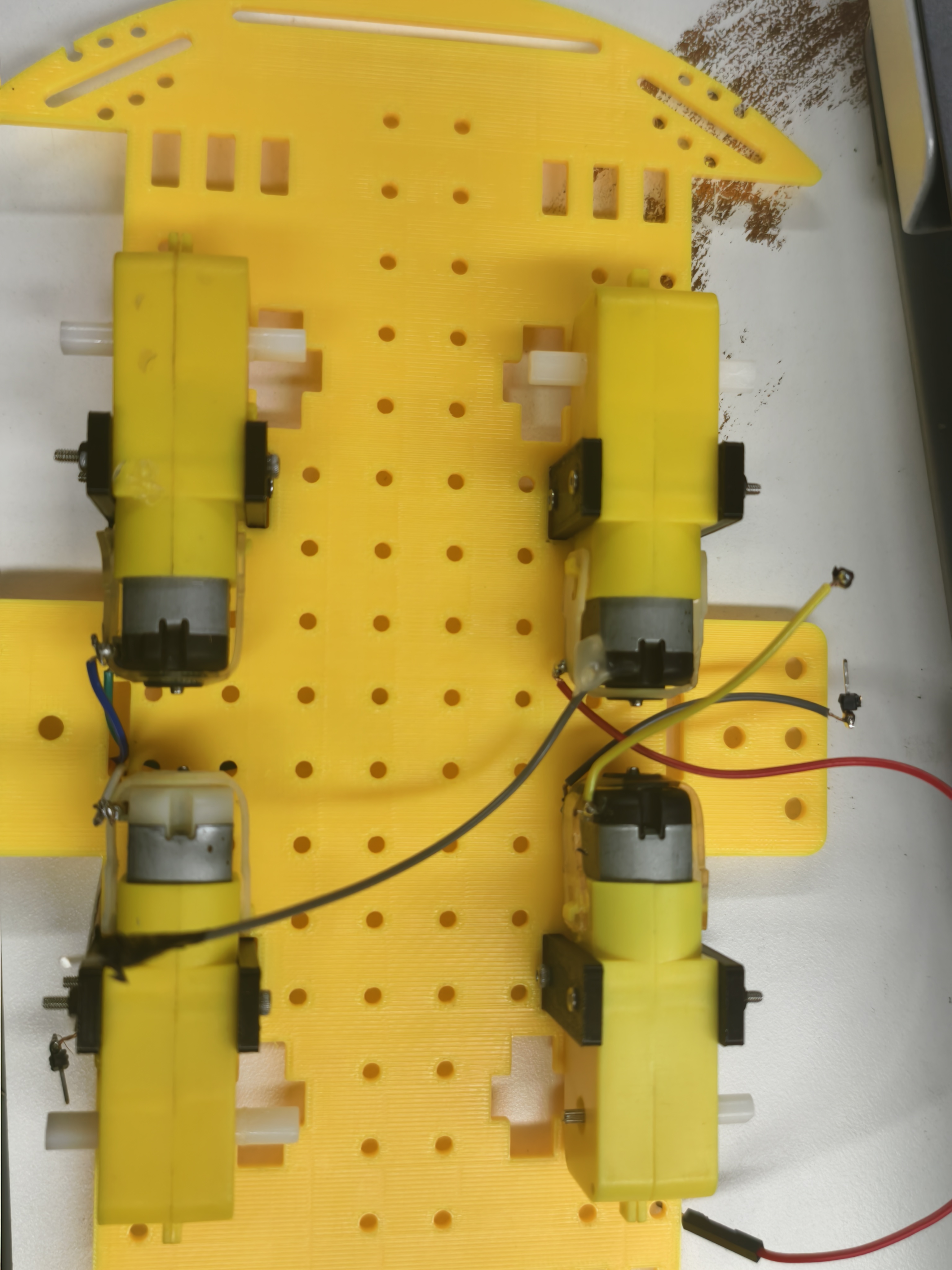

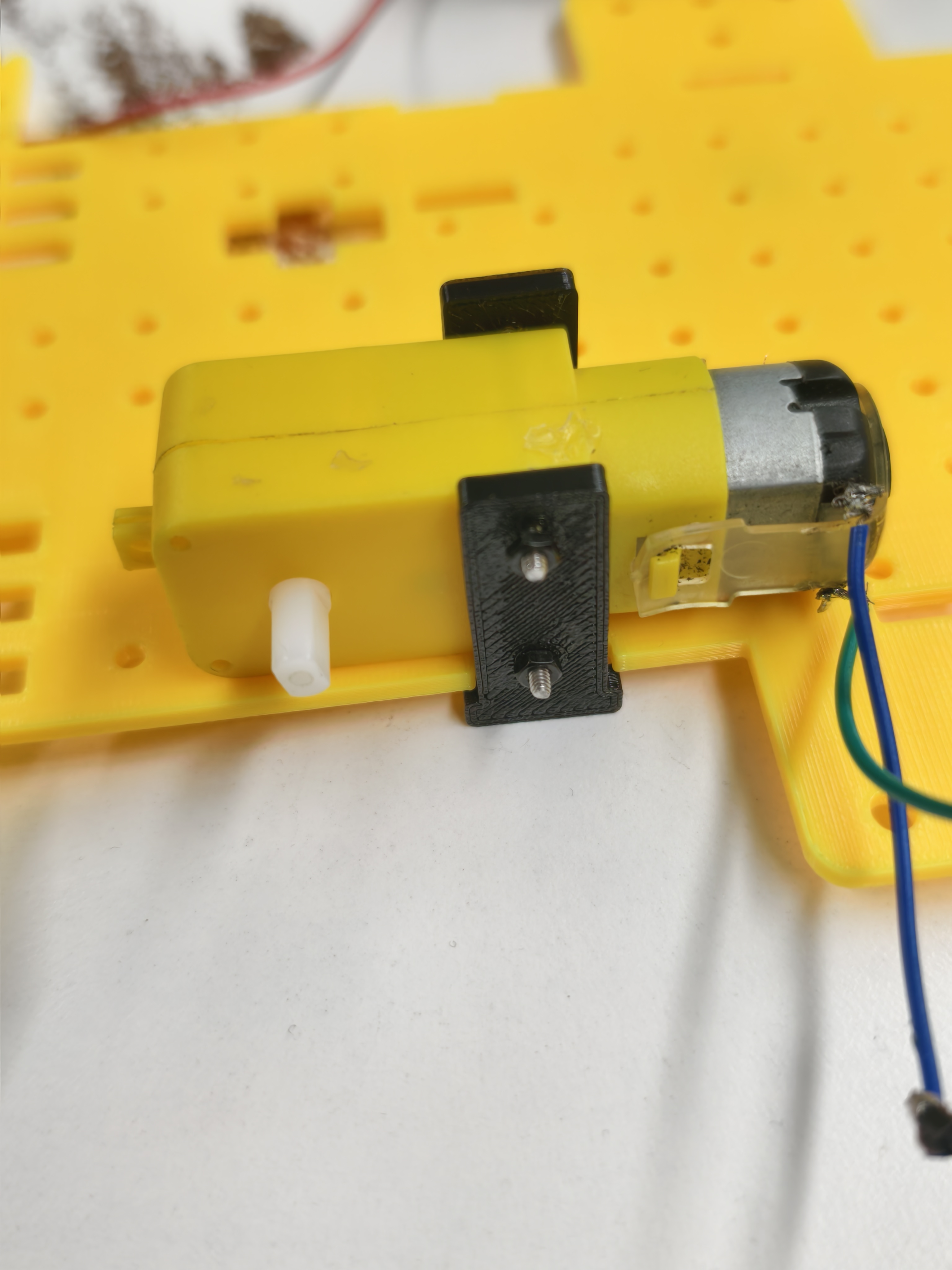

我们需要把4个TT马达装在底盘下面。每个马达要用2个卡扣穿过底盘来固定位置，最后再用M2乘30的长螺丝拧紧。

3

马达连接L298N

向左
向右
12345

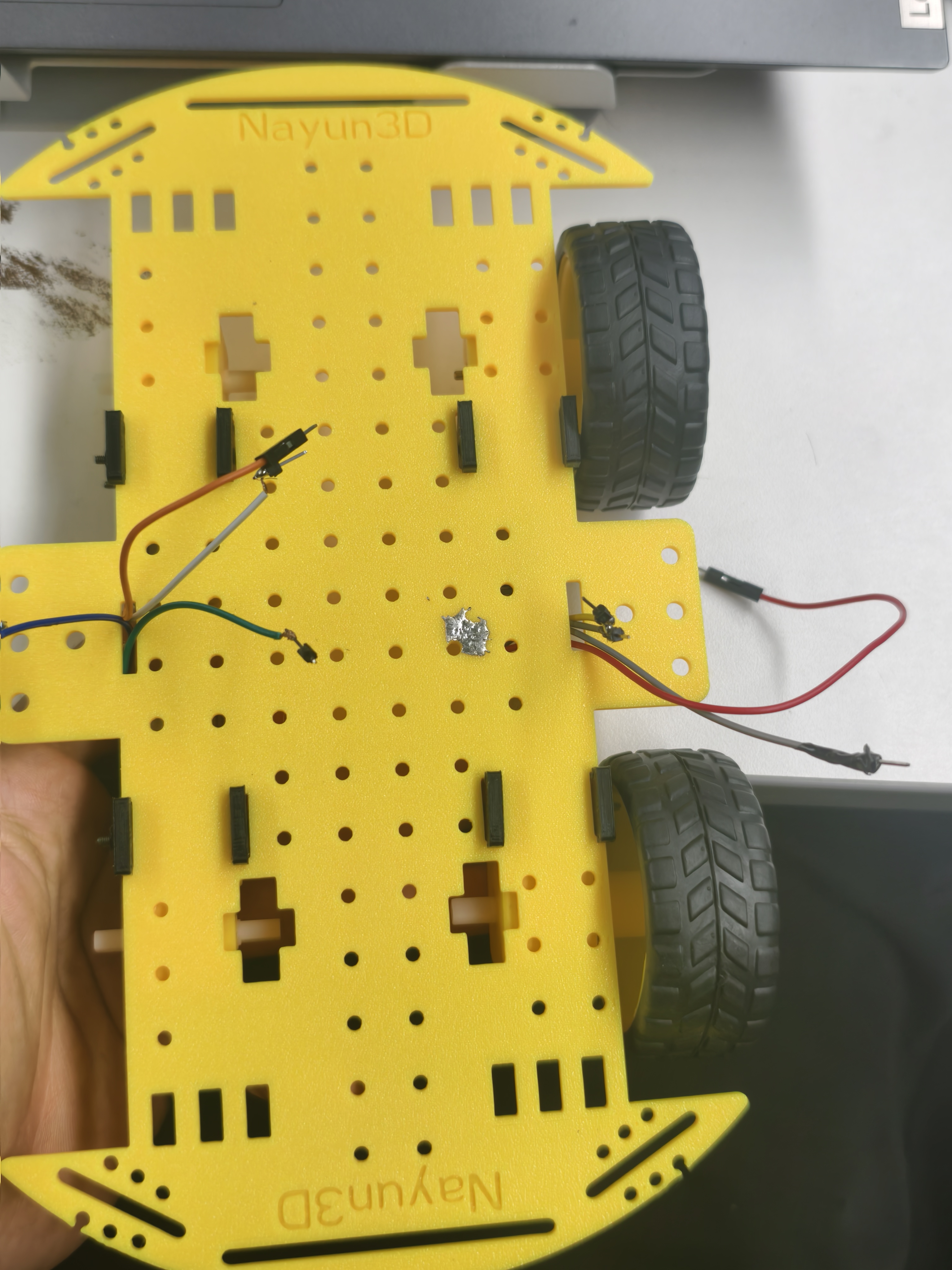

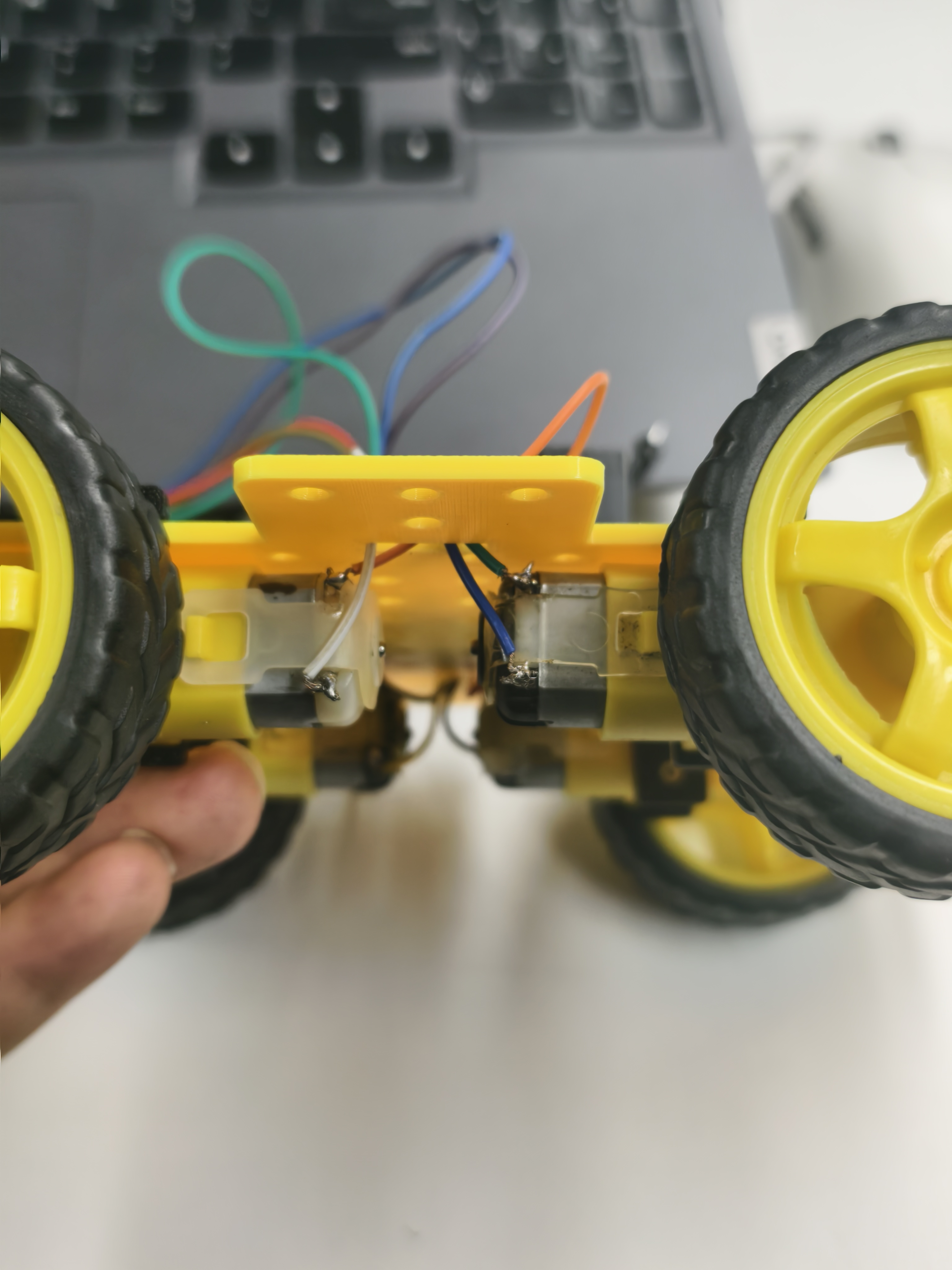

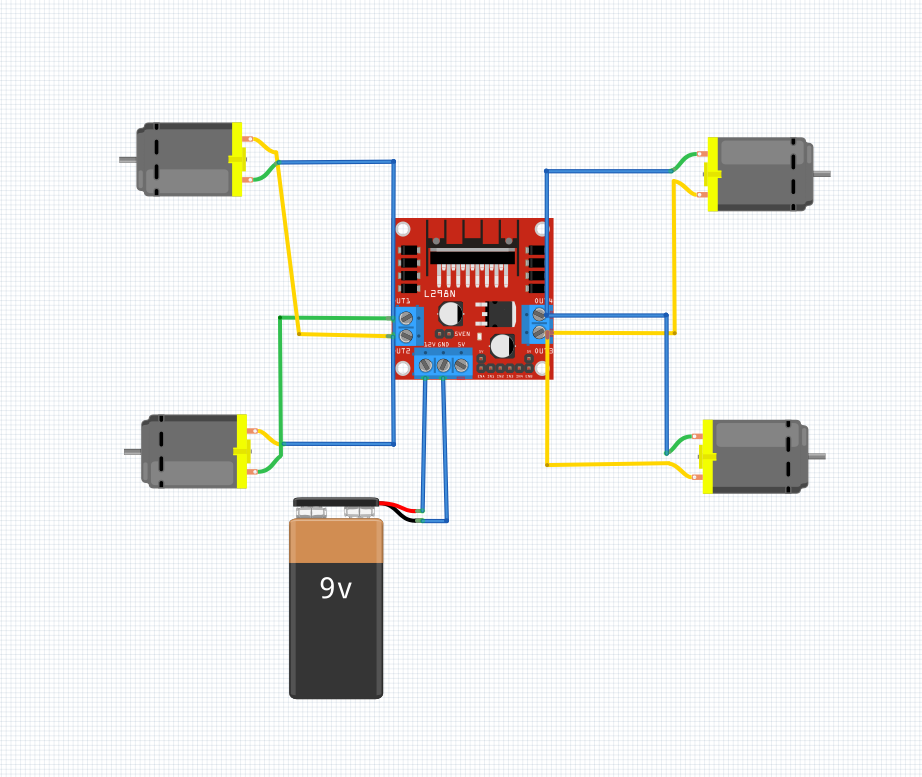

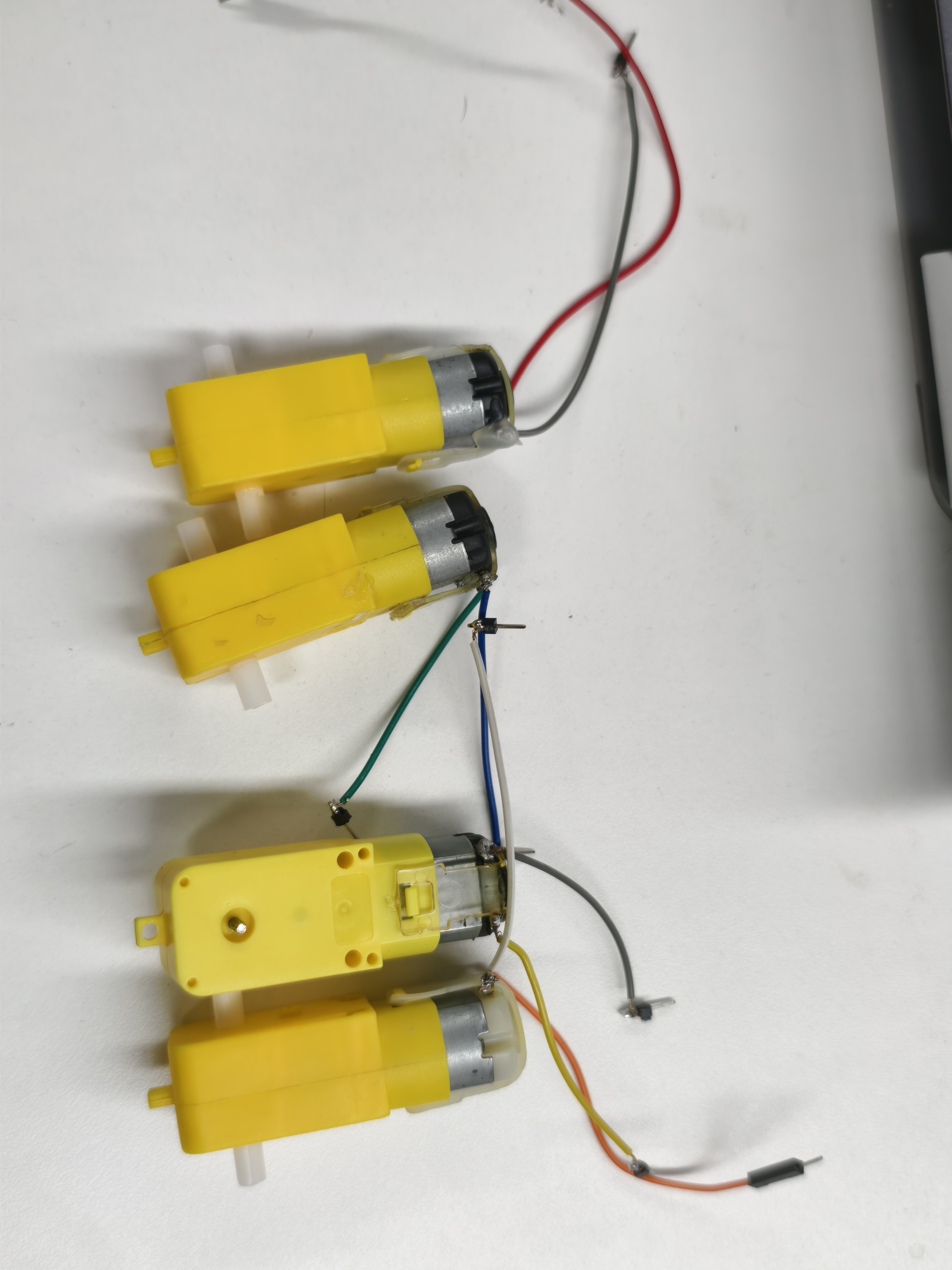

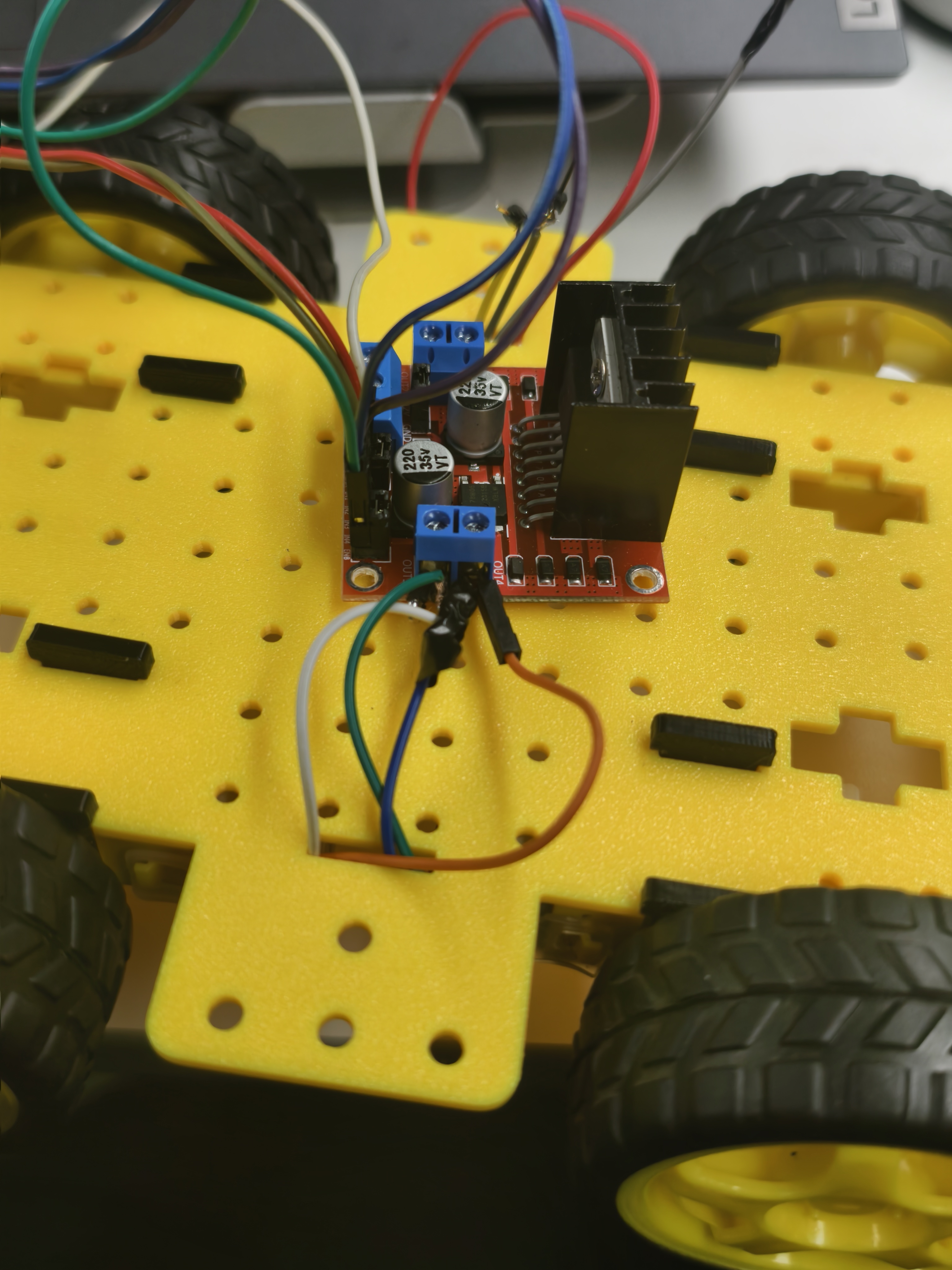

线束由底盘侧边引至上表面。以单侧为例进行接线说明：请将正极与负极导线分别接入对应的OUT接口端子。根据最后一图的接线即可。

4

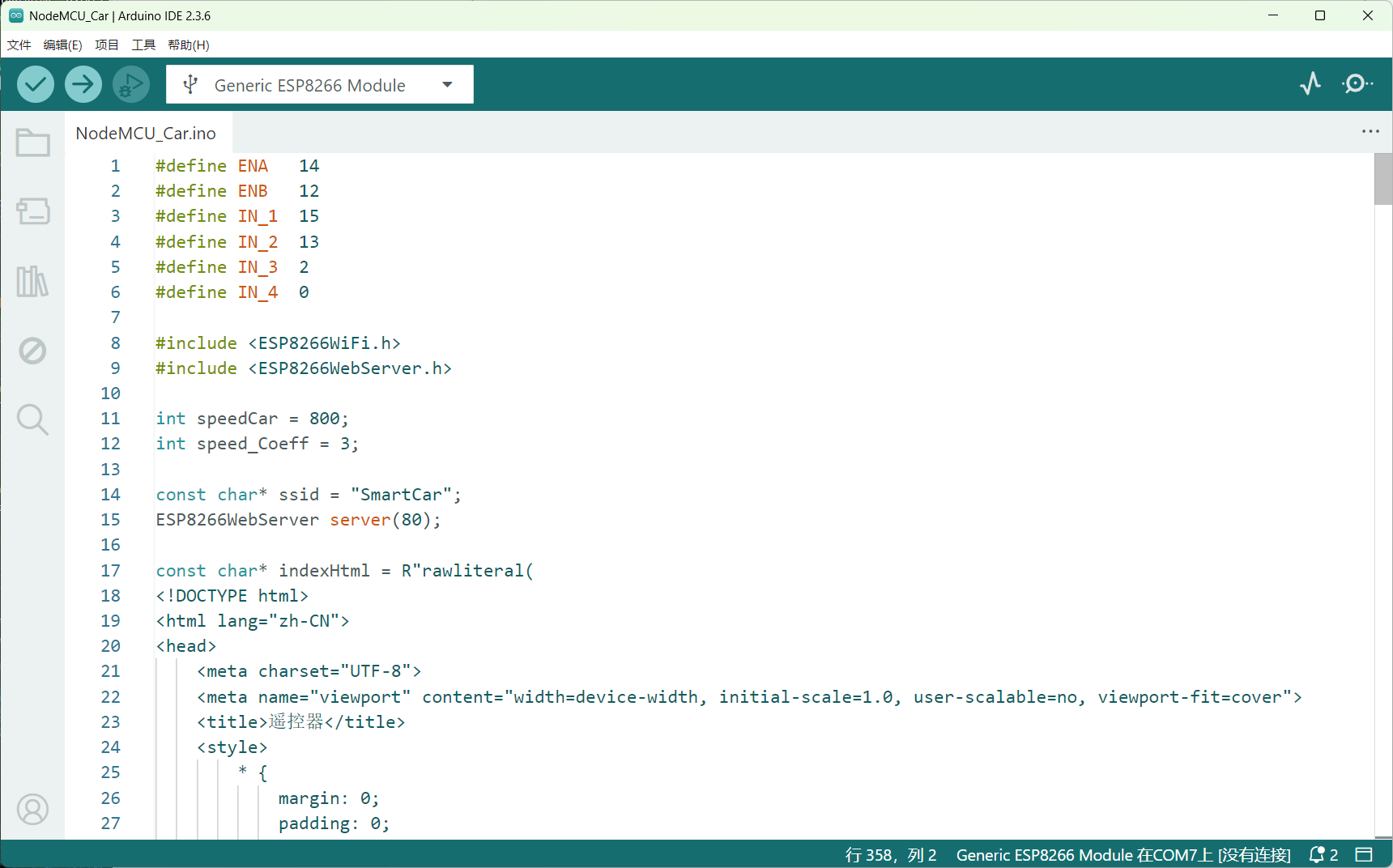

烧录控制代码

#define ENA 14
#define ENB 12
#define IN_1 15
#define IN_2 13
#define IN_3 2
#define IN_4 0

#include <ESP8266WiFi.h>
#include <ESP8266WebServer.h>

int speedCar = 800;
int speed_Coeff = 3;

const char* ssid = "SmartCar";
ESP8266WebServer server(80);

const char* indexHtml = R"rawliteral(
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0, user-scalable=no, viewport-fit=cover">
<title>遥控器</title>
<style>
* {
margin: 0;
padding: 0;
box-sizing: border-box;
user-select: none;
-webkit-tap-highlight-color: transparent;
}
body {
background: #0f172a;
font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', sans-serif;
min-height: 100vh;
display: flex;
justify-content: center;
align-items: center;
padding: 20px;
}
.remote {
max-width: 360px;
width: 100%;
background: #1e293b;
border-radius: 48px;
padding: 30px 20px;
box-shadow: 0 20px 40px rgba(0,0,0,0.3);
border: 1px solid #334155;
}
.ip {
text-align: center;
color: #3b82f6;
font-size: 14px;
font-family: monospace;
margin-bottom: 30px;
letter-spacing: 1px;
}
/* 9键方向盘 */
.dpad-grid {
display: grid;
grid-template-columns: repeat(3, 1fr);
gap: 12px;
}
.dpad-btn {
aspect-ratio: 1;
background: #334155;
border: none;
border-radius: 20px;
font-size: 28px;
font-weight: bold;
cursor: pointer;
color: #f1f5f9;
transition: all 0.05s linear;
box-shadow: 0 4px 12px rgba(0,0,0,0.2);
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
gap: 4px;
}
.dpad-btn .small {
font-size: 11px;
font-weight: normal;
opacity: 0.8;
}
.dpad-btn:active {
transform: scale(0.92);
background: #3b82f6;
}
.stop-btn {
background: #ef4444;
}
.stop-btn:active {
background: #dc2626;
}
/* 底部停止按钮 */
.bottom-stop {
margin-top: 24px;
}
.big-stop {
width: 100%;
background: #ef4444;
border: none;
padding: 16px;
border-radius: 40px;
color: white;
font-size: 18px;
font-weight: bold;
cursor: pointer;
transition: all 0.05s linear;
}
.big-stop:active {
transform: scale(0.97);
background: #dc2626;
}
.status {
text-align: center;
color: #94a3b8;
font-size: 12px;
margin-top: 20px;
}
.status-dot {
display: inline-block;
width: 8px;
height: 8px;
background: #22c55e;
border-radius: 50%;
margin-right: 6px;
animation: pulse 1.5s infinite;
}
@keyframes pulse {
0%, 100% { opacity: 1; }
50% { opacity: 0.5; }
}
</style>
</head>
<body>
<div class="remote">
<div class="ip" id="ipDisplay">192.168.4.1</div>
<!-- 9键方向盘 -->
<div class="dpad-grid">
<!-- 第一行 -->
<button class="dpad-btn" data-cmd="G" data-continue="true">↖<span class="small">左前</span></button>
<button class="dpad-btn" data-cmd="F" data-continue="true">▲<span class="small">前进</span></button>
<button class="dpad-btn" data-cmd="I" data-continue="true">↗<span class="small">右前</span></button>
<!-- 第二行 -->
<button class="dpad-btn" data-cmd="L" data-continue="true">◀<span class="small">左转</span></button>
<button class="dpad-btn stop-btn" data-cmd="S">●<span class="small">停止</span></button>
<button class="dpad-btn" data-cmd="R" data-continue="true">▶<span class="small">右转</span></button>
<!-- 第三行 -->
<button class="dpad-btn" data-cmd="H" data-continue="true">↙<span class="small">左后</span></button>
<button class="dpad-btn" data-cmd="B" data-continue="true">▼<span class="small">后退</span></button>
<button class="dpad-btn" data-cmd="J" data-continue="true">↘<span class="small">右后</span></button>
</div>
<!-- 底部停止按钮 -->
<div class="bottom-stop">
<button class="big-stop" id="stopBtn">⏹️ 紧急停止</button>
</div>
<div class="status">
<span class="status-dot"></span>
<span id="statusText">待机</span>
</div>
</div>
<script>
let carIP = window.location.hostname;
if (carIP === 'localhost' || carIP === '127.0.0.1' || carIP === '') {
carIP = '192.168.4.1';
}
document.getElementById('ipDisplay').innerText = carIP;
let lastCmd = '';
let activeTimers = {};
function sendCommand(cmd) {
if (lastCmd === cmd && cmd !== 'S') return;
fetch(`http://${carIP}/?State=${cmd}`, { mode: 'no-cors' }).catch(e => {});
lastCmd = cmd;
const names = {
'F': '前进', 'B': '后退', 'L': '左转', 'R': '右转',
'G': '左前', 'I': '右前', 'H': '左后', 'J': '右后', 'S': '待机'
};
document.getElementById('statusText').innerText = names[cmd] || '运行';
}
function startContinue(cmd) {
if (activeTimers[cmd]) return;
sendCommand(cmd);
activeTimers[cmd] = setInterval(() => sendCommand(cmd), 100);
}
function stopContinue(cmd) {
if (activeTimers[cmd]) {
clearInterval(activeTimers[cmd]);
delete activeTimers[cmd];
}
if (cmd !== 'S') sendCommand('S');
}
function bindButton(btn, cmd, isContinue) {
btn.addEventListener('mousedown', (e) => {
e.preventDefault();
if (isContinue) startContinue(cmd);
else sendCommand(cmd);
});
btn.addEventListener('mouseup', () => { if (isContinue) stopContinue(cmd); });
btn.addEventListener('mouseleave', () => { if (isContinue) stopContinue(cmd); });
btn.addEventListener('touchstart', (e) => {
e.preventDefault();
if (isContinue) startContinue(cmd);
else sendCommand(cmd);
});
btn.addEventListener('touchend', () => { if (isContinue) stopContinue(cmd); });
btn.addEventListener('touchcancel', () => { if (isContinue) stopContinue(cmd); });
}
document.querySelectorAll('[data-cmd]').forEach(btn => {
let cmd = btn.getAttribute('data-cmd');
let isContinue = btn.hasAttribute('data-continue');
bindButton(btn, cmd, isContinue);
});
document.getElementById('stopBtn').addEventListener('click', () => {
Object.keys(activeTimers).forEach(cmd => {
if (activeTimers[cmd]) clearInterval(activeTimers[cmd]);
});
activeTimers = {};
sendCommand('S');
});
// 键盘控制
let currentKeyCmd = null;
let keyTimer = null;
document.addEventListener('keydown', (e) => {
const key = e.key.toLowerCase();
const map = {
'arrowup': 'F', 'arrowdown': 'B', 'arrowleft': 'L', 'arrowright': 'R',
'w': 'F', 's': 'B', 'a': 'L', 'd': 'R',
'q': 'G', 'e': 'I', 'z': 'H', 'c': 'J'
};
if (map[key]) {
e.preventDefault();
if (currentKeyCmd === map[key]) return;
if (currentKeyCmd && keyTimer) clearInterval(keyTimer);
currentKeyCmd = map[key];
sendCommand(currentKeyCmd);
keyTimer = setInterval(() => sendCommand(currentKeyCmd), 100);
}
if (key === ' ') { e.preventDefault(); sendCommand('S'); }
});
document.addEventListener('keyup', (e) => {
const key = e.key.toLowerCase();
const mapKeys = ['arrowup','arrowdown','arrowleft','arrowright','w','s','a','d','q','e','z','c'];
if (mapKeys.includes(key)) {
if (keyTimer) clearInterval(keyTimer);
keyTimer = null;
sendCommand('S');
currentKeyCmd = null;
}
});
setTimeout(() => sendCommand('S'), 100);
</script>
</body>
</html>
)rawliteral";

// ==================== 电机控制 ====================
void goAhead() {
digitalWrite(IN_1, LOW); digitalWrite(IN_2, HIGH); analogWrite(ENA, speedCar);
digitalWrite(IN_3, LOW); digitalWrite(IN_4, HIGH); analogWrite(ENB, speedCar);
}
void goBack() {
digitalWrite(IN_1, HIGH); digitalWrite(IN_2, LOW); analogWrite(ENA, speedCar);
digitalWrite(IN_3, HIGH); digitalWrite(IN_4, LOW); analogWrite(ENB, speedCar);
}
void goRight() {
digitalWrite(IN_1, HIGH); digitalWrite(IN_2, LOW); analogWrite(ENA, speedCar);
digitalWrite(IN_3, LOW); digitalWrite(IN_4, HIGH); analogWrite(ENB, speedCar);
}
void goLeft() {
digitalWrite(IN_1, LOW); digitalWrite(IN_2, HIGH); analogWrite(ENA, speedCar);
digitalWrite(IN_3, HIGH); digitalWrite(IN_4, LOW); analogWrite(ENB, speedCar);
}
void goAheadRight() {
digitalWrite(IN_1, LOW); digitalWrite(IN_2, HIGH); analogWrite(ENA, speedCar / speed_Coeff);
digitalWrite(IN_3, LOW); digitalWrite(IN_4, HIGH); analogWrite(ENB, speedCar);
}
void goAheadLeft() {
digitalWrite(IN_1, LOW); digitalWrite(IN_2, HIGH); analogWrite(ENA, speedCar);
digitalWrite(IN_3, LOW); digitalWrite(IN_4, HIGH); analogWrite(ENB, speedCar / speed_Coeff);
}
void goBackRight() {
digitalWrite(IN_1, HIGH); digitalWrite(IN_2, LOW); analogWrite(ENA, speedCar / speed_Coeff);
digitalWrite(IN_3, HIGH); digitalWrite(IN_4, LOW); analogWrite(ENB, speedCar);
}
void goBackLeft() {
digitalWrite(IN_1, HIGH); digitalWrite(IN_2, LOW); analogWrite(ENA, speedCar);
digitalWrite(IN_3, HIGH); digitalWrite(IN_4, LOW); analogWrite(ENB, speedCar / speed_Coeff);
}
void stopRobot() {
digitalWrite(IN_1, LOW); digitalWrite(IN_2, LOW); analogWrite(ENA, 0);
digitalWrite(IN_3, LOW); digitalWrite(IN_4, LOW); analogWrite(ENB, 0);
}

void setSpeed(int speed) {
if (speed >= 400 && speed <= 1023) speedCar = speed;
}

void handleRoot() {
if (server.hasArg("State")) {
String cmd = server.arg("State");
if (cmd == "0") setSpeed(400);
else if (cmd == "1") setSpeed(470);
else if (cmd == "2") setSpeed(540);
else if (cmd == "3") setSpeed(610);
else if (cmd == "4") setSpeed(680);
else if (cmd == "5") setSpeed(750);
else if (cmd == "6") setSpeed(820);
else if (cmd == "7") setSpeed(890);
else if (cmd == "8") setSpeed(960);
else if (cmd == "9") setSpeed(1023);
else if (cmd == "F") goAhead();
else if (cmd == "B") goBack();
else if (cmd == "L") goLeft();
else if (cmd == "R") goRight();
else if (cmd == "I") goAheadRight();
else if (cmd == "G") goAheadLeft();
else if (cmd == "J") goBackRight();
else if (cmd == "H") goBackLeft();
else if (cmd == "S") stopRobot();
}
server.send(200, "text/html", indexHtml);
}

void setup() {
pinMode(ENA, OUTPUT); pinMode(ENB, OUTPUT);
pinMode(IN_1, OUTPUT); pinMode(IN_2, OUTPUT);
pinMode(IN_3, OUTPUT); pinMode(IN_4, OUTPUT);
stopRobot();
Serial.begin(115200);
WiFi.mode(WIFI_AP);
WiFi.softAP(ssid);
server.on("/", handleRoot);
server.begin();
}

void loop() {
server.handleClient();
}
5

ESP8266连接L298N


务必先完成代码烧录，再连接L298N驱动模块！

若插线烧录，可能导致串口通信干扰，造成代码烧录失败。

接线说明

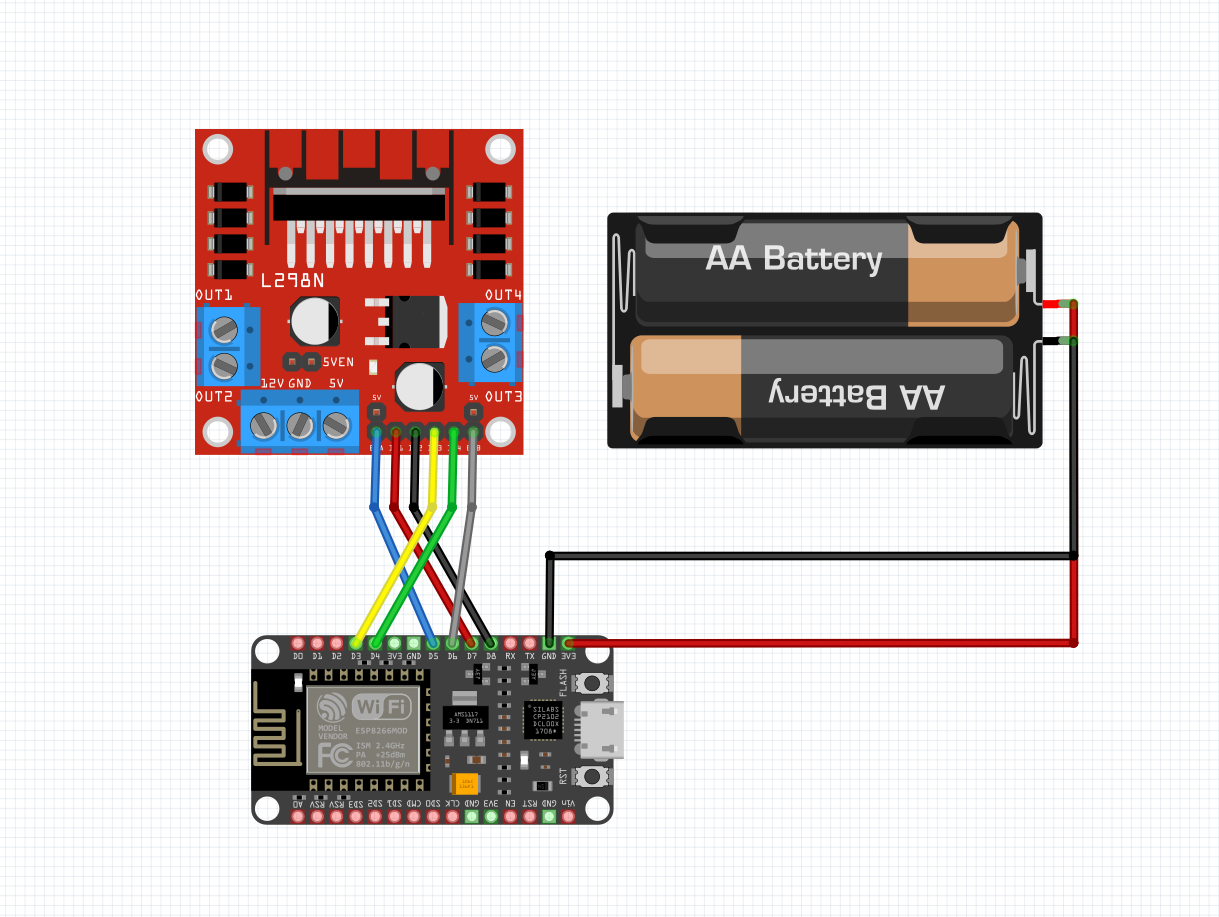

代码烧录完成后，以下是ESP8266与L298N对应关系：


L298N

ESP8266

功能说明

ENA

D5

电机A PWM调速

IN1

D7

电机A 方向控制

IN2

D8

电机A 方向控制

IN3

D3

电机B 方向控制1

IN4

D4

电机B 方向控制2

ENB

D6

电机B PWM调速


6

网页控制小车

向左
向右
12

设备重启： 给ESP8266供电后，按下 RST 按键复位模块。

连接热点： 打开手机Wi-Fi列表，搜索并连接名为 SmartCar 的热点。

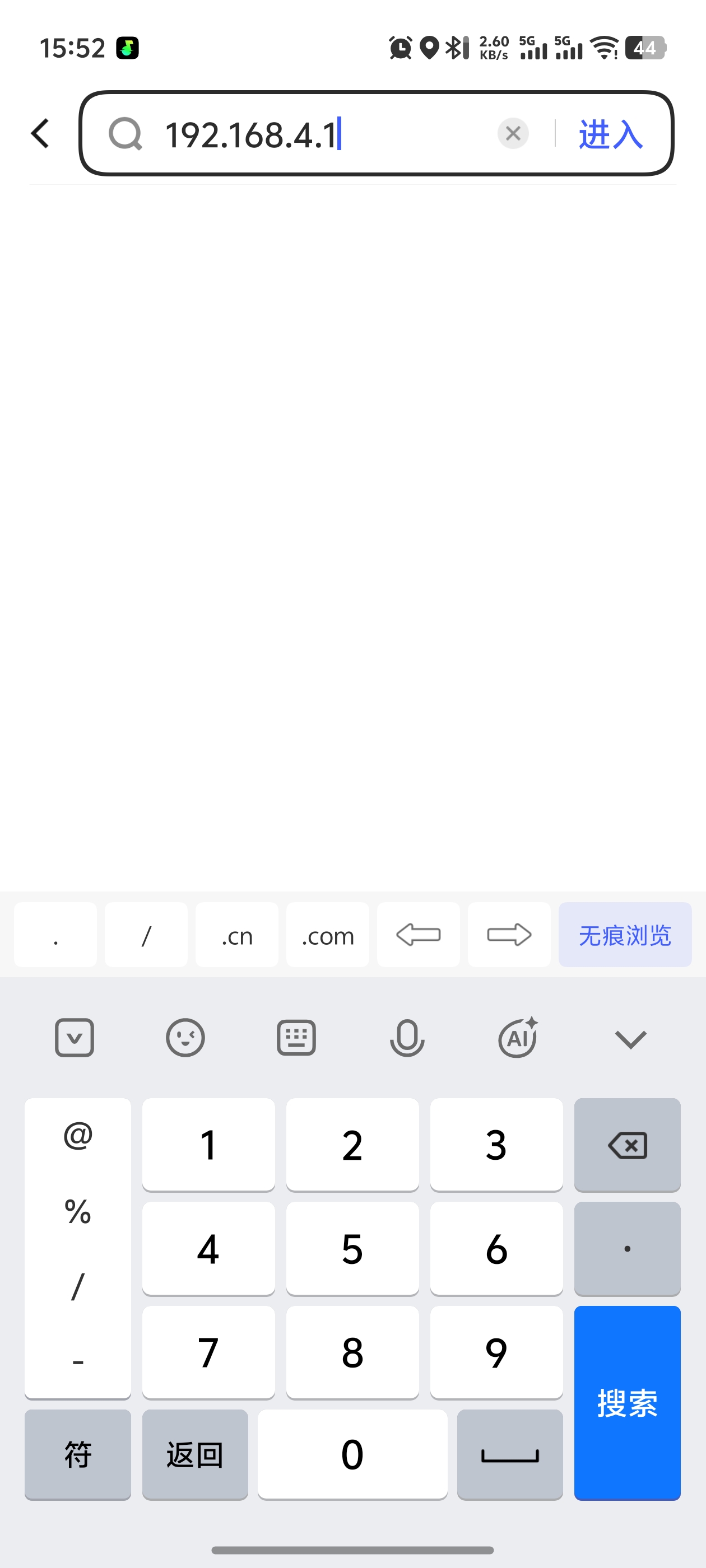

访问控制台： 连接成功后，打开手机浏览器，在地址栏输入 192.168.4.1 并访问。

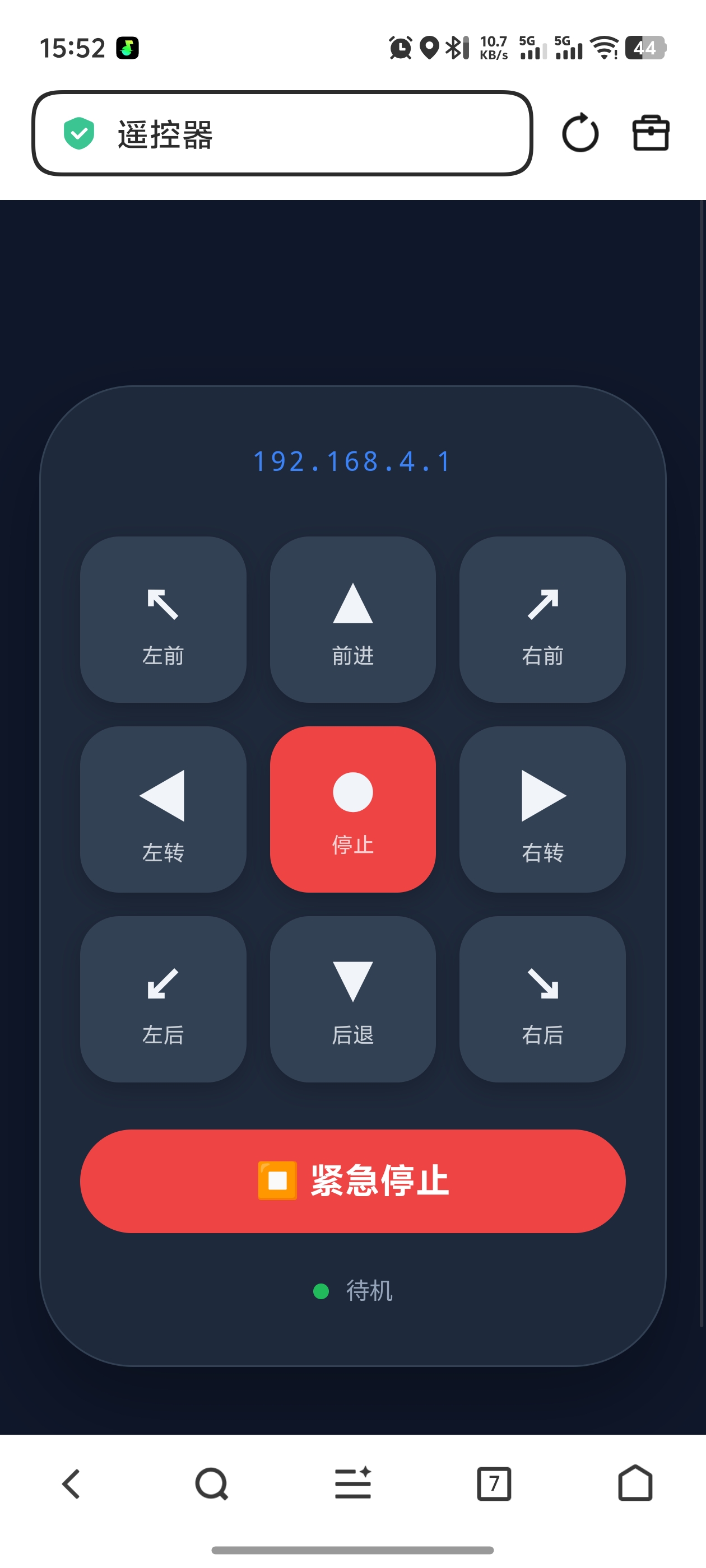

操控小车： 进入UI控制页面后，即可通过屏幕上的方向键控制小车运动。

7

完成

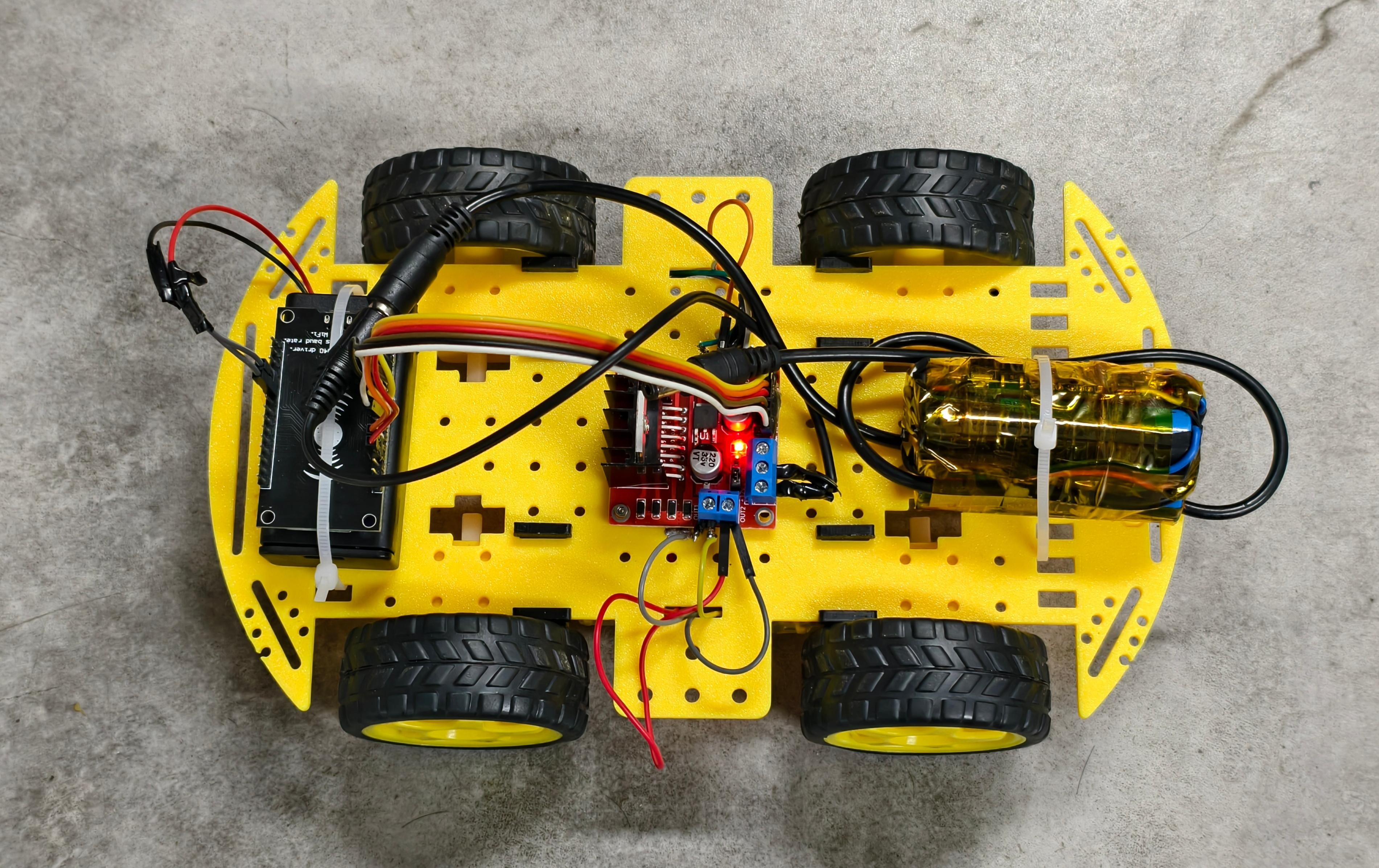

这辆小车的底盘来自智能小车底板3D打印制作这篇文章的3D模型，而整体的组装和实现是按照ESP8266无线小车这篇教程完成的。
