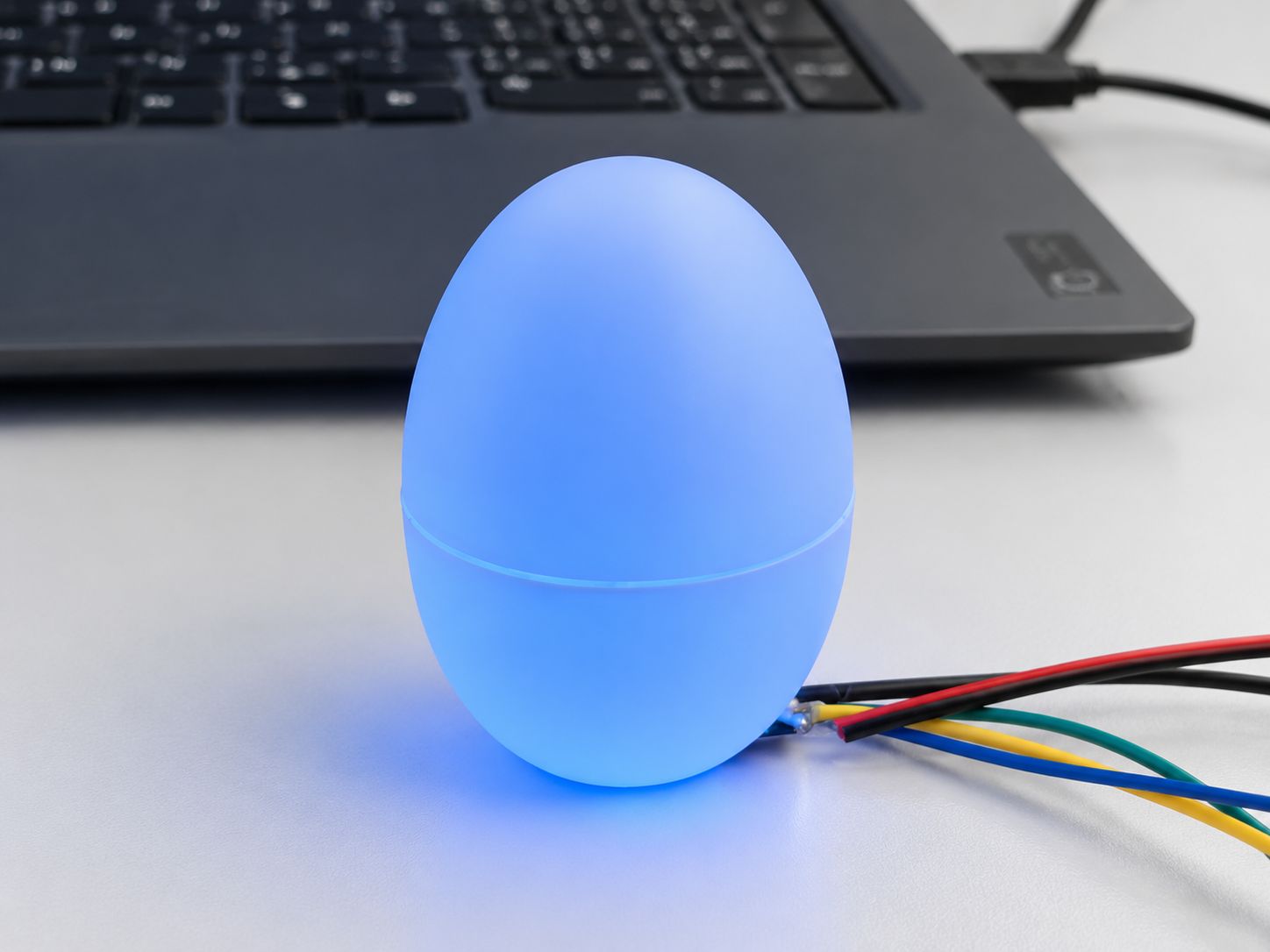

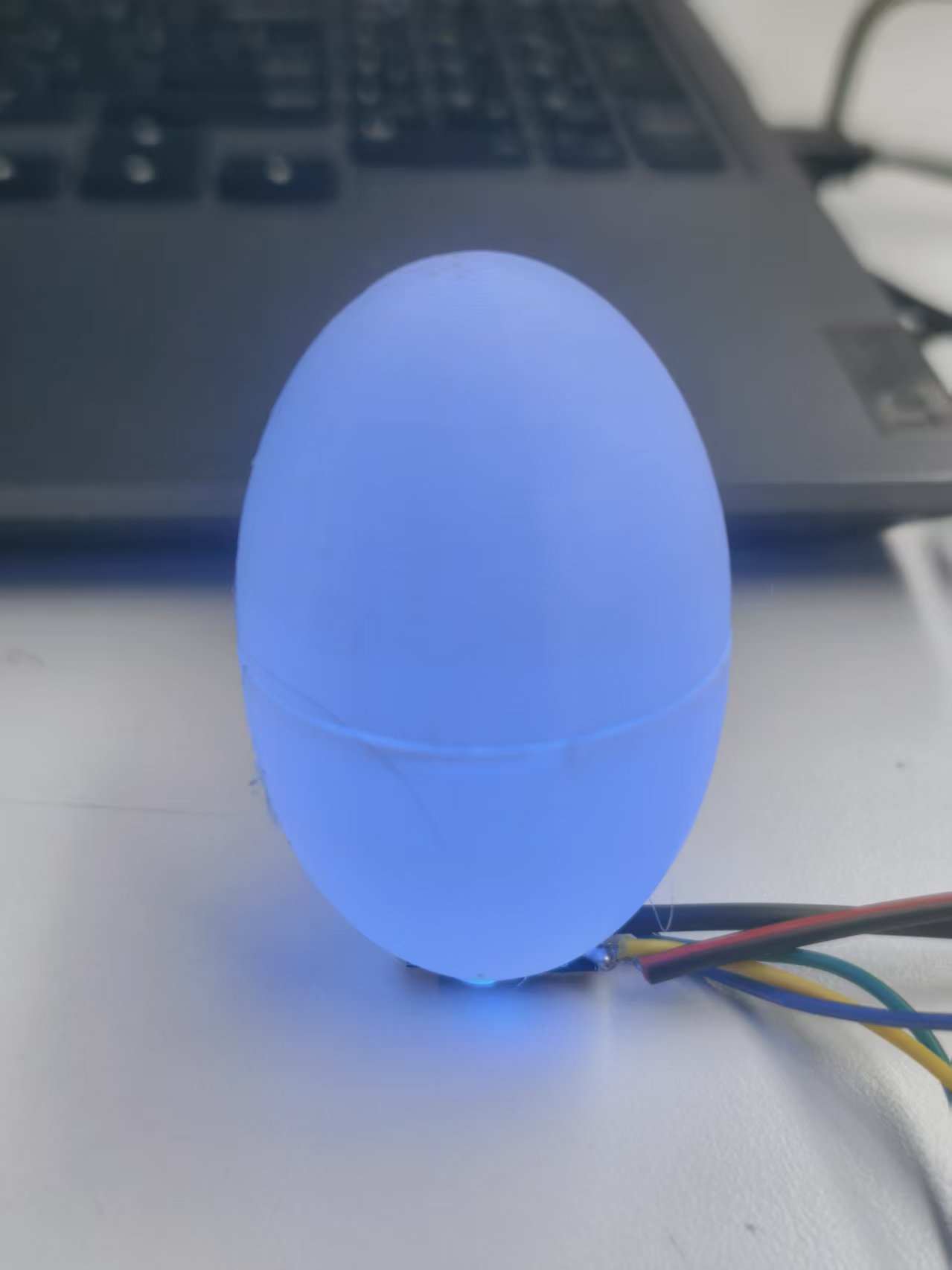

利用 ESP8266 开发板驱动 WS2812B 灯珠，将其封装进蛋壳中制作成的智能天气灯。设备联网后能实时获取当地天气状况，通过灯光颜色直观反馈：晴天暖黄、雨天深蓝，并具备随温度变化的色彩渐变效果。

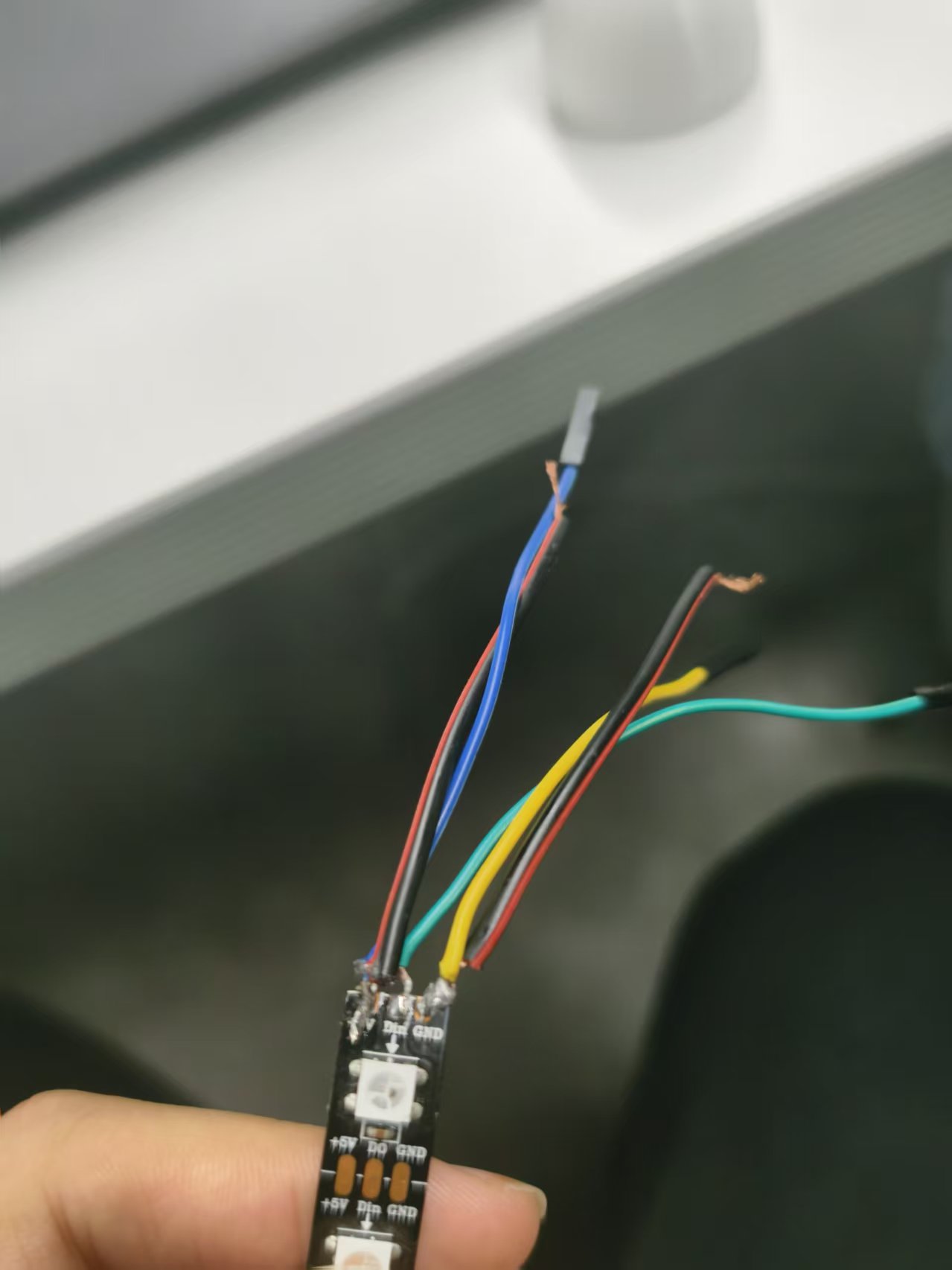

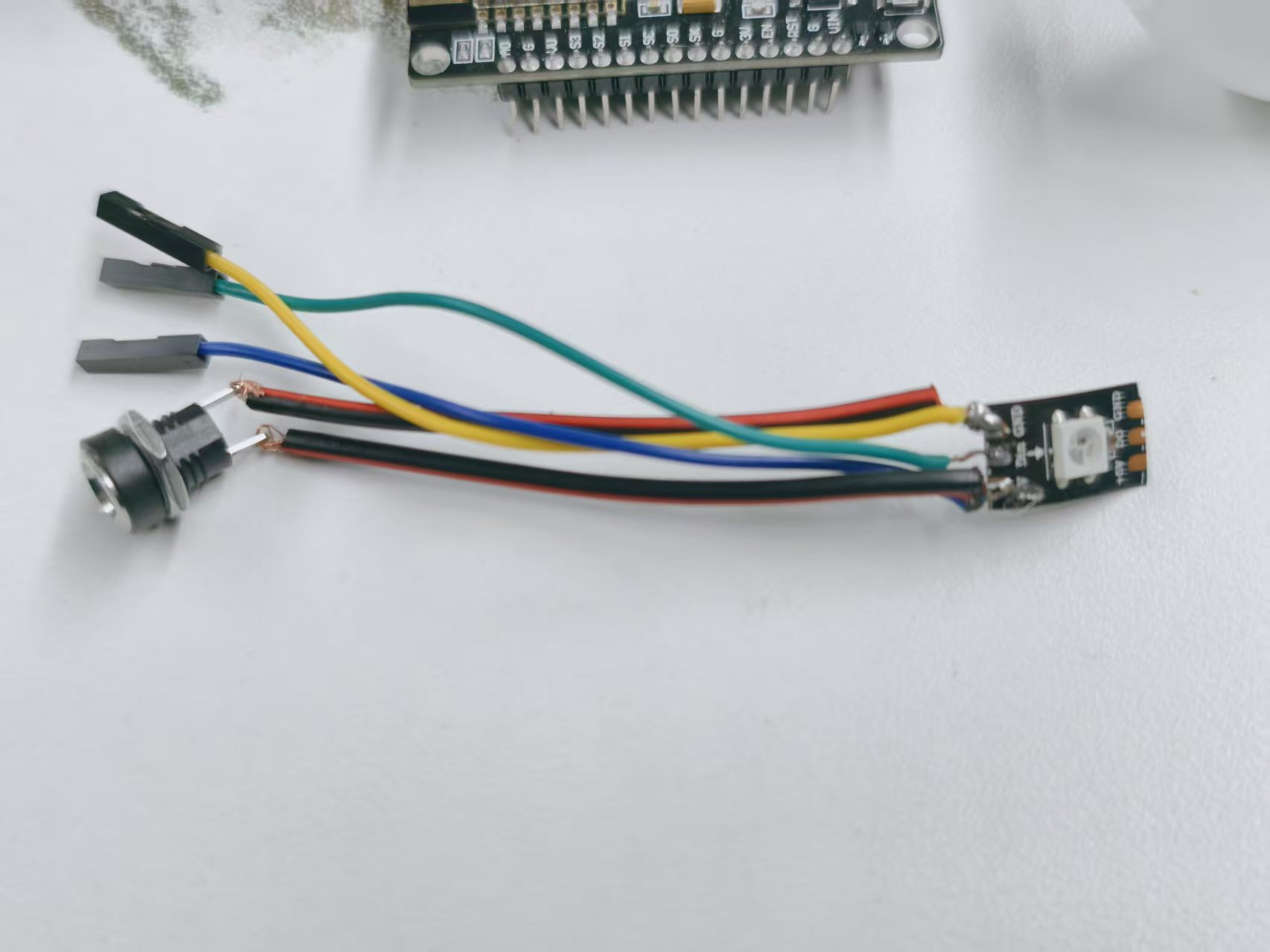

焊接RGB灯珠

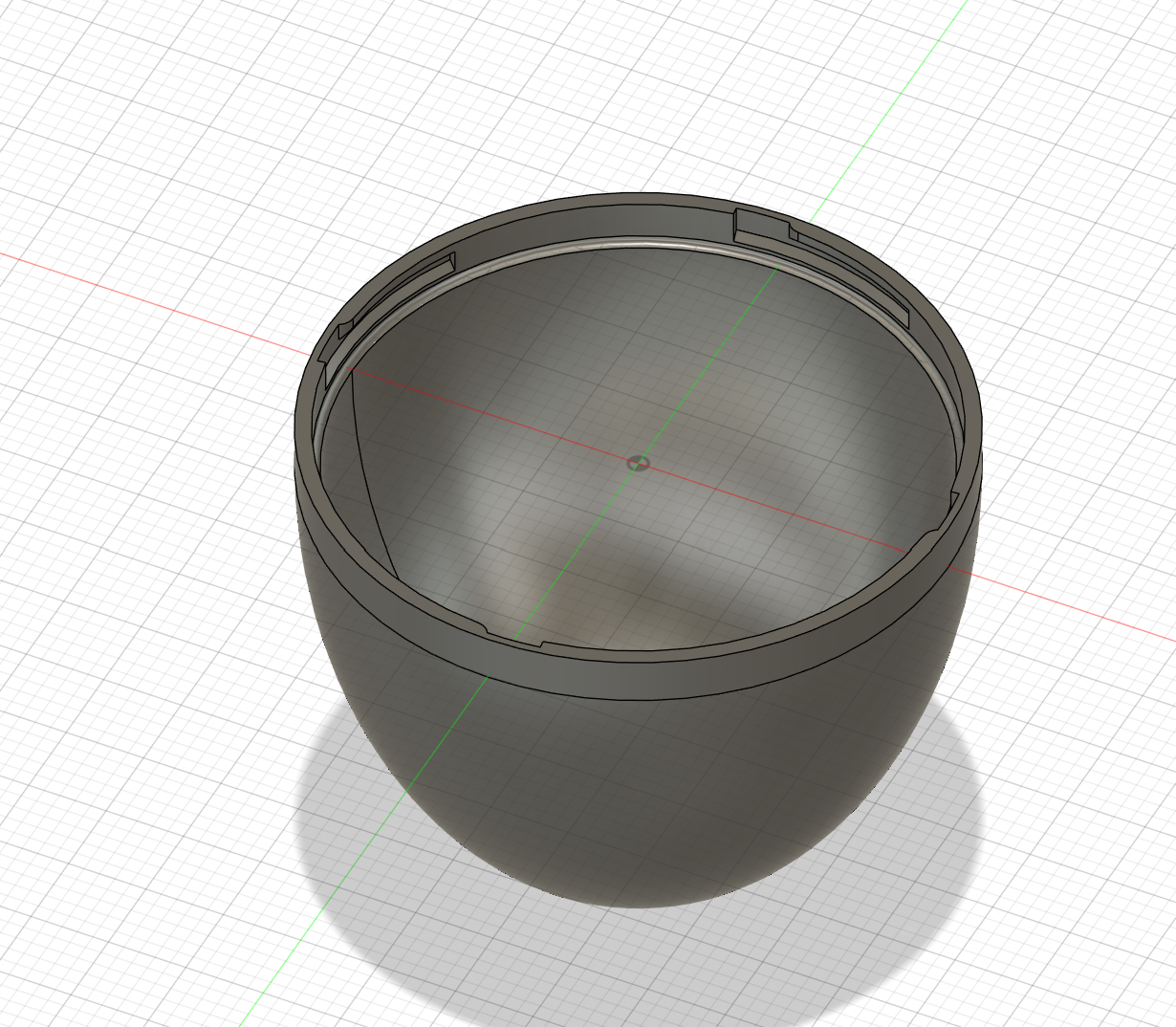

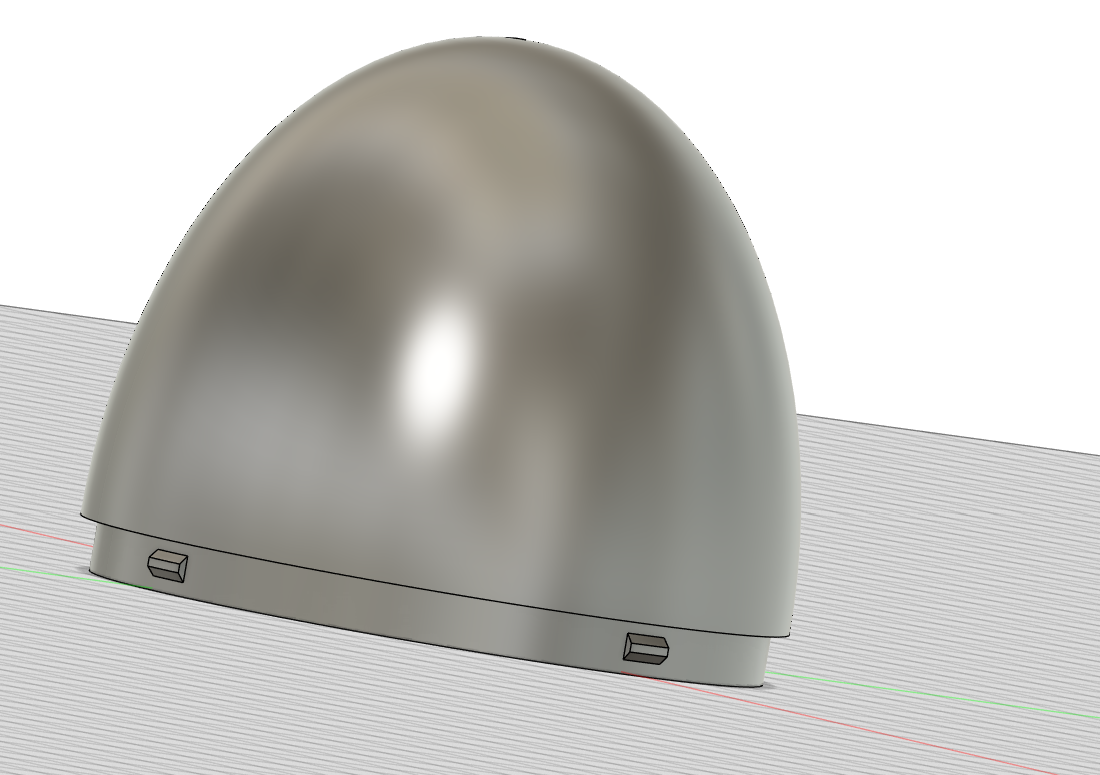

打印模型

egg-top.stl

1.13MB

egg-bottom.stl

1.12MB

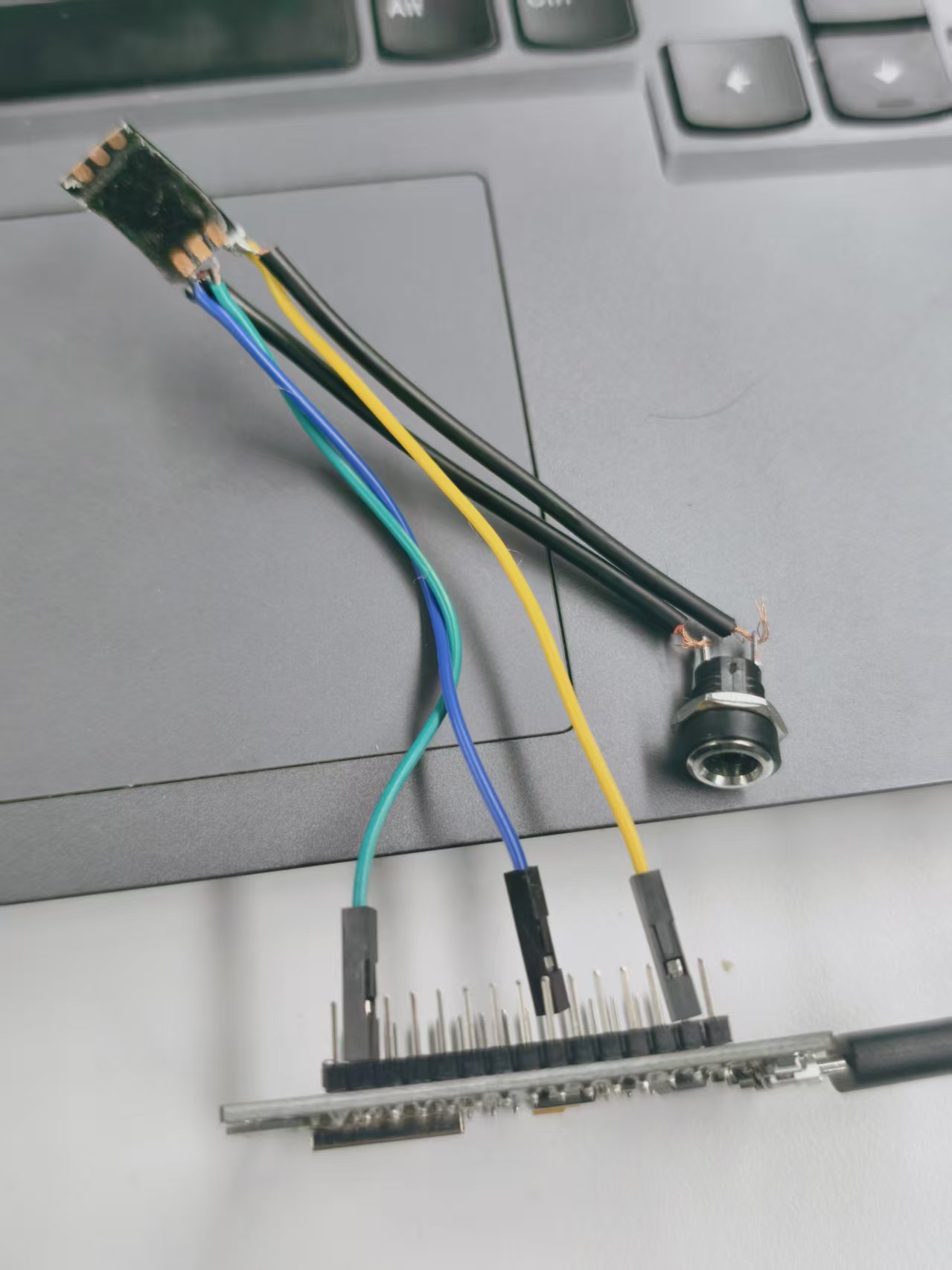

接线图

编写代码

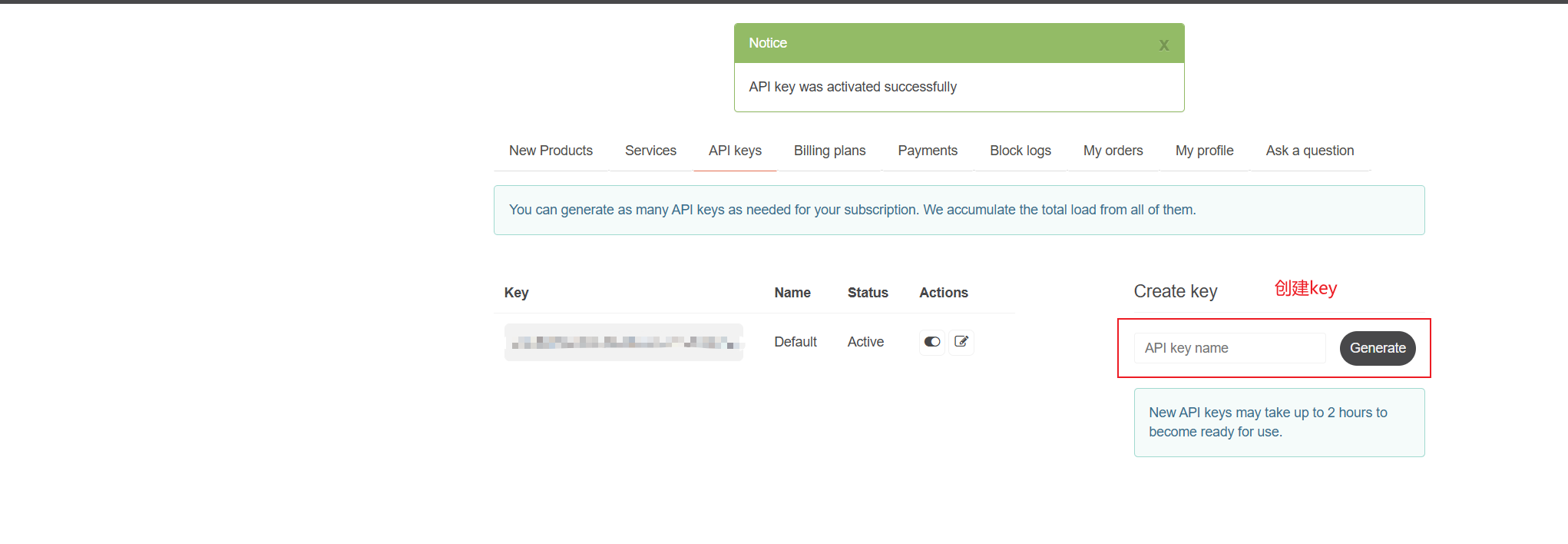

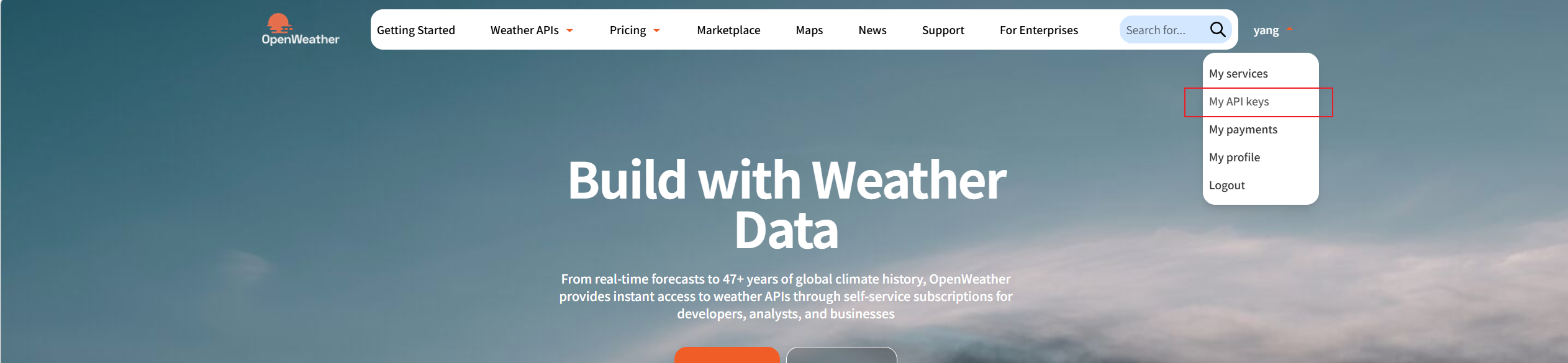

使用前需先在天气网站注册账号，获取 API 密钥后才能调用接口。

#include <Adafruit_NeoPixel.h>

#include <ESP8266WiFi.h>

#include <ESP8266HTTPClient.h>

#include <ArduinoJson.h>

#include <WiFiClient.h>

#include <ESP8266WebServer.h>

// ============================================================

// 1. 用户配置

// ============================================================

const char* WIFI_SSID = "vivoX200";

const char* WIFI_PASSWORD = "12345678";

const char* OPENWEATHER_KEY = "你的apikey";

const char* AP_SSID = "ESP8266_LED";

const char* AP_PASSWORD = "12345678";

#define LED_PIN 5 // GPIO5 = NodeMCU D1

#define NUM_LEDS 1 // 当前只有一颗灯珠

#define DEFAULT_BRIGHTNESS 255 // 0~255

// ============================================================

// 2. 全局对象与状态

// ============================================================

Adafruit_NeoPixel strip(NUM_LEDS, LED_PIN, NEO_GRB + NEO_KHZ800);

ESP8266WebServer server(80);

uint8_t currentBrightness = DEFAULT_BRIGHTNESS;

// 0=关闭 1=纯色 2=RGB循环 3=彩虹 4=呼吸 5=闪烁 6=天气

uint8_t currentMode = 0;

uint32_t solidColor = 0;

unsigned long lastEffectUpdate = 0;

// 天气配置

String weatherCity = "Beijing";

String weatherCountry = "CN";

String weatherMain = "";

bool weatherAvailable = false;

const unsigned long WEATHER_INTERVAL = 30UL * 60UL * 1000UL;

unsigned long lastWeatherUpdate = 0;

// ============================================================

// 3. 灯光基础控制

// ============================================================

// 只在 setup() 中把 NeoPixel 内部亮度设为 255。

// 后续统一通过软件缩放 RGB，避免反复 setBrightness()

// 对 Adafruit_NeoPixel 内部像素缓存进行重复缩放。

uint32_t scaleColor(uint32_t color, uint8_t brightness) {

uint8_t r = (color >> 16) & 0xFF;

uint8_t g = (color >> 8) & 0xFF;

uint8_t b = color & 0xFF;

r = ((uint16_t)r * brightness) / 255;

g = ((uint16_t)g * brightness) / 255;

b = ((uint16_t)b * brightness) / 255;

return strip.Color(r, g, b);

}

void displayColor(uint32_t color, uint8_t brightness) {

uint32_t outputColor = scaleColor(color, brightness);

for (uint16_t i = 0; i < NUM_LEDS; i++) {

strip.setPixelColor(i, outputColor);

}

strip.show();

}

void turnOffLight() {

strip.clear();

strip.show();

}

// ============================================================

// 4. 天气颜色与天气灯光

// ============================================================

uint32_t getWeatherColor() {

String value = weatherMain;

value.toLowerCase();

if (value == "clear") {

return strip.Color(255, 190, 0); // 晴天：暖黄色

}

if (value == "clouds") {

return strip.Color(160, 170, 190); // 多云：灰蓝色

}

if (value == "rain" || value == "drizzle") {

return strip.Color(0, 100, 255); // 雨天：蓝色

}

if (value == "thunderstorm") {

return strip.Color(160, 40, 255); // 雷雨：紫色

}

if (value == "snow") {

return strip.Color(180, 220, 255); // 雪天：冰蓝色

}

if (value == "mist" || value == "fog" ||

value == "haze" || value == "smoke") {

return strip.Color(120, 130, 140); // 雾、霾：灰色

}

return strip.Color(100, 100, 100);

}

void applyWeatherLight() {

if (!weatherAvailable) {

Serial.println(F("天气数据尚未获取，暂时无法显示天气灯光"));

return;

}

displayColor(getWeatherColor(), currentBrightness);

Serial.print(F("天气灯光已更新："));

Serial.println(weatherMain);

}

// ============================================================

// 5. URL 编码

// ============================================================

String urlEncode(const String& value) {

const char hex[] = "0123456789ABCDEF";

String encoded;

encoded.reserve(value.length() * 3);

for (size_t i = 0; i < value.length(); i++) {

uint8_t c = (uint8_t)value[i];

if ((c >= 'a' && c <= 'z') ||

(c >= 'A' && c <= 'Z') ||

(c >= '0' && c <= '9') ||

c == '-' || c == '_' || c == '.' || c == '~') {

encoded += (char)c;

} else {

encoded += '%';

encoded += hex[c >> 4];

encoded += hex[c & 0x0F];

}

return encoded;

}

// ============================================================

// 6. 获取天气：只解析 weather[0].main

// ============================================================

void fetchWeather() {

if (WiFi.status() != WL_CONNECTED) {

Serial.println(F("外部 WiFi 未连接，无法获取天气"));

return;

}

WiFiClient client;

HTTPClient http;

String url =

"http://api.openweathermap.org/data/2.5/weather?q=" +

urlEncode(weatherCity) + "," +

urlEncode(weatherCountry) +

"&appid=" + String(OPENWEATHER_KEY) +

"&units=metric";

Serial.println();

Serial.println(F("正在获取天气..."));

Serial.print(F("查询城市："));

Serial.print(weatherCity);

Serial.print(',');

Serial.println(weatherCountry);

http.setTimeout(15000);

http.setReuse(false);

if (!http.begin(client, url)) {

Serial.println(F("HTTP 初始化失败"));

return;

}

int httpCode = http.GET();

Serial.print(F("HTTP 状态码："));

Serial.println(httpCode);

if (httpCode == HTTP_CODE_OK) {

// 过滤器只保留 weather[0].main。

StaticJsonDocument<96> filter;

filter["weather"][0]["main"] = true;

// 只存储过滤后的天气字段。

StaticJsonDocument<128> doc;

DeserializationError error = deserializeJson(

doc,

http.getStream(),

DeserializationOption::Filter(filter)

);

if (error) {

Serial.print(F("天气 JSON 解析失败："));

Serial.println(error.c_str());

} else if (doc["weather"][0]["main"].is<const char*>()) {

weatherMain = doc["weather"][0]["main"].as<String>();

weatherAvailable = weatherMain.length() > 0;

Serial.print(F("天气获取成功："));

Serial.println(weatherMain);

if (currentMode == 6 && weatherAvailable) {

applyWeatherLight();

}

} else {

Serial.println(F("响应中没有 weather[0].main 字段"));

}

} else {

Serial.print(F("天气请求失败："));

Serial.println(http.errorToString(httpCode));

if (httpCode > 0) {

Serial.println(http.getString());

}

http.end();

}

// ============================================================

// 7. 单颗灯珠效果

// ============================================================

// RGB 循环：单颗灯珠依次显示红、绿、蓝。

void rgbCycleStep() {

static uint8_t colorIndex = 0;

uint32_t colors[] = {

strip.Color(255, 0, 0),

strip.Color(0, 255, 0),

strip.Color(0, 0, 255)

};

displayColor(colors[colorIndex], currentBrightness);

colorIndex = (colorIndex + 1) % 3;

}

// 彩虹：单颗灯珠通过持续改变色相呈现彩虹变色。

void rainbowLoop() {

static uint16_t hue = 0;

if (millis() - lastEffectUpdate < 25) {

return;

}

lastEffectUpdate = millis();

uint32_t color = strip.gamma32(strip.ColorHSV(hue));

displayColor(color, currentBrightness);

hue += 384;

}

// 呼吸：单颗灯珠蓝色渐亮、渐暗。

void breathingLoop() {

static int breathLevel = 0;

static int direction = 1;

if (millis() - lastEffectUpdate < 15) {

return;

}

lastEffectUpdate = millis();

uint8_t actualBrightness =

((uint16_t)currentBrightness * breathLevel) / 255;

displayColor(strip.Color(0, 80, 255), actualBrightness);

breathLevel += direction * 3;

if (breathLevel >= 255) {

breathLevel = 255;

direction = -1;

} else if (breathLevel <= 0) {

breathLevel = 0;

direction = 1;

}

// 单颗灯珠没有空间位置可供流水，因此跑马灯改为橙色闪烁。

void marqueeLoop() {

static bool ledOn = false;

if (millis() - lastEffectUpdate < 300) {

return;

}

lastEffectUpdate = millis();

ledOn = !ledOn;

if (ledOn) {

displayColor(strip.Color(255, 80, 0), currentBrightness);

} else {

turnOffLight();

}

// ============================================================

// 8. 模式切换

// ============================================================

void setLightMode(uint8_t mode) {

currentMode = mode;

lastEffectUpdate = millis();

switch (currentMode) {

case 0:

turnOffLight();

break;

case 1:

displayColor(solidColor, currentBrightness);

break;

case 2:

rgbCycleStep();

break;

case 3:

// 立即显示彩虹效果，不等待下一次 loop。

lastEffectUpdate = millis() - 25;

rainbowLoop();

break;

case 4:

// 呼吸灯从暗到亮开始。

displayColor(strip.Color(0, 80, 255), 0);

break;

case 5:

// 立即点亮一次，之后进入闪烁。

displayColor(strip.Color(255, 80, 0), currentBrightness);

break;

case 6:

if (weatherAvailable) {

applyWeatherLight();

} else {

turnOffLight();

fetchWeather();

}

break;

}

// ============================================================

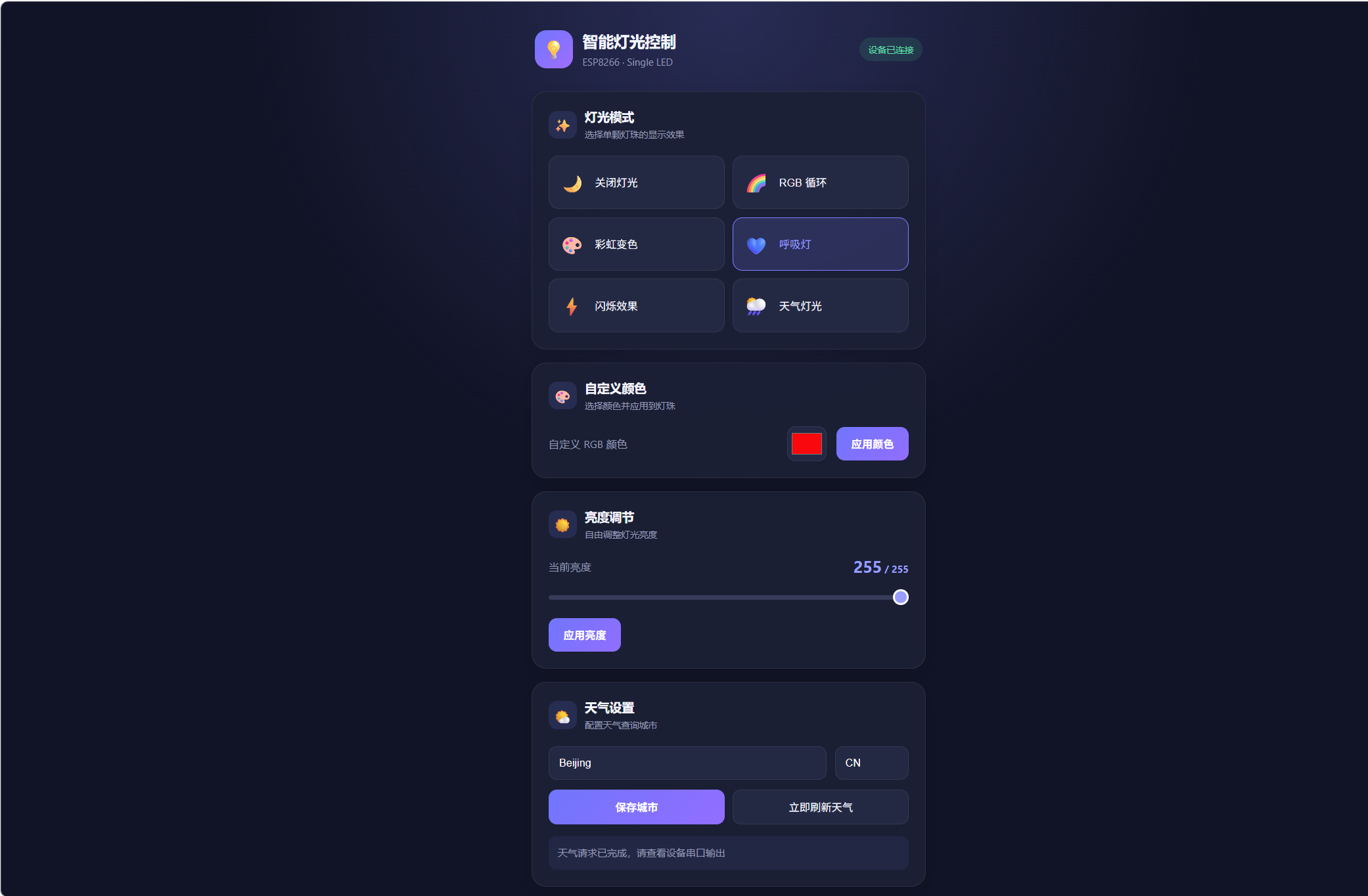

// 9. 网页

// ============================================================

void handleRoot() {

static const char PAGE[] PROGMEM = R"rawliteral(

<!DOCTYPE html>

<head>

<title>ESP8266 智能灯光控制</title>

<style>

:root{--bg:#101426;--card:#1a2035;--light:#222a43;--primary:#7185ff;--text:#f4f6ff;--muted:#929bb5}

*{margin:0;padding:0;box-sizing:border-box}

body{min-height:100vh;padding:24px 16px 40px;background:radial-gradient(circle at 50% 0%,#252d55 0%,transparent 40%),var(--bg);color:var(--text);font-family:-apple-system,BlinkMacSystemFont,"Segoe UI","Microsoft YaHei",sans-serif}

.container{width:100%;max-width:480px;margin:auto}

.header{padding:12px 4px 28px}

.header-top{display:flex;justify-content:space-between;align-items:center}

.logo{display:flex;align-items:center;gap:12px}

.logo-icon{width:46px;height:46px;display:flex;align-items:center;justify-content:center;border-radius:14px;background:linear-gradient(135deg,#667aff,#9b72ff);font-size:24px}

.logo h1{font-size:19px}.logo p{margin-top:5px;font-size:12px;color:var(--muted)}

.status{padding:7px 11px;border-radius:20px;background:rgba(64,210,151,.12);color:#55dba7;font-size:11px}

.card{padding:20px;margin-bottom:16px;border:1px solid rgba(255,255,255,.07);border-radius:18px;background:rgba(26,32,53,.92);box-shadow:0 8px 28px rgba(0,0,0,.12)}

.card-title{display:flex;align-items:center;gap:10px;margin-bottom:18px}

.card-icon{width:34px;height:34px;display:flex;align-items:center;justify-content:center;border-radius:10px;background:rgba(113,133,255,.14);font-size:17px}

.card-title h2{font-size:15px}.card-title p{margin-top:4px;font-size:11px;color:var(--muted)}

.mode-grid{display:grid;grid-template-columns:repeat(2,1fr);gap:10px}

.mode-btn{min-height:65px;display:flex;align-items:center;gap:12px;padding:12px;border:1px solid rgba(255,255,255,.07);border-radius:12px;background:var(--light);color:var(--text);font-size:13px;text-align:left;cursor:pointer}

.mode-btn:active{transform:scale(.97)}

.mode-btn.active{border-color:var(--primary);background:rgba(113,133,255,.18);color:#929fff}

.mode-icon{font-size:23px}

.color-content{display:flex;align-items:center;justify-content:space-between;gap:12px}

.color-description{font-size:13px;color:var(--muted)}

.color-control{display:flex;align-items:center;gap:12px}

input[type=color]{width:48px;height:42px;padding:3px;border:1px solid rgba(255,255,255,.07);border-radius:10px;background:var(--light)}

.action-btn{padding:11px 18px;border:0;border-radius:10px;background:linear-gradient(135deg,#667aff,#8c72ff);color:white;font-size:13px;font-weight:600;cursor:pointer}

.brightness-header{display:flex;justify-content:space-between;align-items:center}

.brightness-value{color:#929fff;font-size:20px;font-weight:650}

input[type=range]{width:100%;height:6px;margin:22px 0;appearance:none;border-radius:10px;background:#343d59}

input[type=range]::-webkit-slider-thumb{width:19px;height:19px;appearance:none;border-radius:50%;background:#929fff;border:3px solid white}

.city-inputs{display:grid;grid-template-columns:1fr 90px;gap:10px;margin-bottom:12px}

input[type=text]{width:100%;min-width:0;padding:12px;border:1px solid rgba(255,255,255,.07);border-radius:10px;outline:none;background:var(--light);color:white;font-size:13px}

.weather-actions{display:grid;grid-template-columns:1fr 1fr;gap:10px}

.weather-actions button{width:100%}

.secondary-btn{padding:11px 10px;border:1px solid rgba(255,255,255,.07);border-radius:10px;background:var(--light);color:var(--text);font-size:13px;cursor:pointer}

.city-info{margin-top:14px;padding:11px;border-radius:9px;background:rgba(113,133,255,.08);color:var(--muted);font-size:12px;line-height:1.6;word-break:break-all}

.footer{padding:12px;text-align:center;color:#68728c;font-size:11px}

button{-webkit-tap-highlight-color:transparent}

@media(max-width:360px){.card{padding:16px}.mode-grid{gap:8px}.mode-btn{padding:10px;font-size:12px}}

</style>

</head>

<body>

<div class="logo"><div class="logo-icon">💡</div><div><h1>智能灯光控制</h1><p>ESP8266 · Single LED</p></div></div>

<div class="status">设备已连接</div>

</div></header>

<div class="card-title"><div class="card-icon">✨</div><div><h2>灯光模式</h2><p>选择单颗灯珠的显示效果</p></div></div>

</div></section>

<div class="card-title"><div class="card-icon">🎨</div><div><h2>自定义颜色</h2><p>选择颜色并应用到灯珠</p></div></div>

</section>

<div class="card-title"><div class="card-icon">☀️</div><div><h2>亮度调节</h2><p>自由调整灯光亮度</p></div></div>

</section>

<div class="card-title"><div class="card-icon">🌤️</div><div><h2>天气设置</h2><p>配置天气查询城市</p></div></div>

<div class="weather-actions"><button class="action-btn" onclick="saveCity()">保存城市</button><button class="secondary-btn" onclick="refreshWeather()">立即刷新天气</button></div>

<div class="city-info" id="cityInfo">天气每 30 分钟自动更新一次</div>

</section>

<footer class="footer">ESP8266 Smart LED Controller</footer>

</div>

function api(params){return fetch('/api?'+params).then(r=>{if(!r.ok)throw new Error('HTTP '+r.status);return r.text();});}

function setMode(mode){

api('mode='+mode).then(()=>{

document.querySelectorAll('.mode-btn').forEach(b=>b.classList.remove('active'));

const index=[0,2,3,4,5,6].indexOf(mode);

if(index>=0)document.querySelectorAll('.mode-btn')[index].classList.add('active');

}).catch(()=>alert('控制请求失败，请检查设备连接'));

}

function setColor(){

const c=document.getElementById('colorPicker').value;

const r=parseInt(c.slice(1,3),16),g=parseInt(c.slice(3,5),16),b=parseInt(c.slice(5,7),16);

api('mode=1&r='+r+'&g='+g+'&b='+b).then(()=>{

document.querySelectorAll('.mode-btn').forEach(x=>x.classList.remove('active'));

}).catch(()=>alert('颜色设置失败'));

}

function updateBrightness(){document.getElementById('brightnessValue').innerText=document.getElementById('bright').value;}

function setBright(){api('bright='+document.getElementById('bright').value).catch(()=>alert('亮度设置失败'));}

function saveCity(){

const city=document.getElementById('city').value.trim();

const country=document.getElementById('country').value.trim();

if(!city){alert('请输入城市名称');return;}

api('setcity=1&city='+encodeURIComponent(city)+'&country='+encodeURIComponent(country))

.then(()=>document.getElementById('cityInfo').innerText='已设置查询城市：'+city+', '+country)

.catch(()=>alert('城市设置失败'));

}

function refreshWeather(){

document.getElementById('cityInfo').innerText='正在获取最新天气...';

api('refreshweather=1')

.then(()=>document.getElementById('cityInfo').innerText='天气请求已完成，请查看设备串口输出')

.catch(()=>document.getElementById('cityInfo').innerText='天气请求失败，请检查设备连接');

}

</script>

</body>

</html>

)rawliteral";

server.send_P(200, "text/html; charset=utf-8", PAGE);

}

// ============================================================

// 10. API 接口

// ============================================================

void handleApi() {

if (server.hasArg("mode")) {

int mode = server.arg("mode").toInt();

if (mode >= 0 && mode <= 6) {

if (mode == 1) {

uint8_t r = constrain(server.arg("r").toInt(), 0, 255);

uint8_t g = constrain(server.arg("g").toInt(), 0, 255);

uint8_t b = constrain(server.arg("b").toInt(), 0, 255);

solidColor = strip.Color(r, g, b);

}

setLightMode((uint8_t)mode);

}

if (server.hasArg("bright")) {

currentBrightness = constrain(server.arg("bright").toInt(), 0, 255);

// 静态模式立即按新亮度重绘。

if (currentMode == 0) {

turnOffLight();

} else if (currentMode == 1) {

displayColor(solidColor, currentBrightness);

} else if (currentMode == 6 && weatherAvailable) {

applyWeatherLight();

}

// 动态模式在下一帧自动使用新亮度。

}

if (server.hasArg("setcity") && server.arg("setcity") == "1") {

if (server.hasArg("city")) {

weatherCity = server.arg("city");

}

if (server.hasArg("country")) {

weatherCountry = server.arg("country");

}

weatherAvailable = false;

Serial.print(F("天气城市已修改："));

Serial.print(weatherCity);

Serial.print(',');

Serial.println(weatherCountry);

}

if (server.hasArg("refreshweather") &&

server.arg("refreshweather") == "1") {

fetchWeather();

lastWeatherUpdate = millis();

}

server.send(200, "text/plain; charset=utf-8", "OK");

}

// ============================================================

// 11. 初始化

// ============================================================

void setup() {

Serial.begin(115200);

delay(100);

// 初始化灯珠。NeoPixel 内部亮度固定为 255。

strip.begin();

strip.setBrightness(255);

strip.clear();

strip.show();

// AP + STA 双模式。

WiFi.mode(WIFI_AP_STA);

bool apSuccess = WiFi.softAP(AP_SSID, AP_PASSWORD);

Serial.println();

if (apSuccess) {

Serial.println(F("AP 热点启动成功"));

Serial.print(F("热点名称："));

Serial.println(AP_SSID);

Serial.print(F("热点 IP："));

Serial.println(WiFi.softAPIP());

} else {

Serial.println(F("AP 热点启动失败"));

}

// 发起一次外部 WiFi 连接，不添加自动重连。

WiFi.begin(WIFI_SSID, WIFI_PASSWORD);

Serial.print(F("正在连接外部 WiFi"));

unsigned long connectStart = millis();

while (WiFi.status() != WL_CONNECTED &&

millis() - connectStart < 15000) {

delay(250);

Serial.print('.');

yield();

}

Serial.println();

if (WiFi.status() == WL_CONNECTED) {

Serial.println(F("外部 WiFi 连接成功"));

Serial.print(F("STA IP："));

Serial.println(WiFi.localIP());

} else {

Serial.println(F("外部 WiFi 未连接，AP 网页控制仍可使用"));

}

server.on("/", HTTP_GET, handleRoot);

server.on("/api", HTTP_GET, handleApi);

server.begin();

Serial.println(F("网页服务器已启动"));

Serial.print(F("手机连接热点后访问：http://"));

Serial.println(WiFi.softAPIP());

// 启动时尝试获取一次天气。

if (WiFi.status() == WL_CONNECTED) {

fetchWeather();

}

lastWeatherUpdate = millis();

}

// ============================================================

// 12. 主循环

// ==========================================================

组装与测试

123

本文未经作者允许授权，禁止转载

评论/提问(已发布 0 条)
