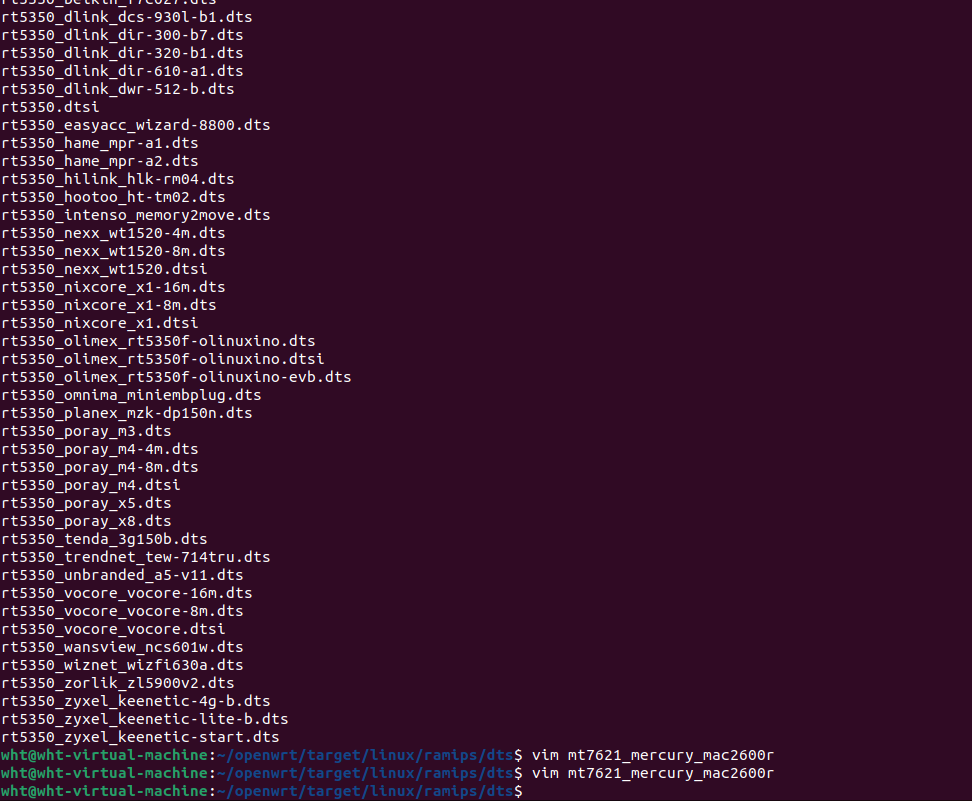

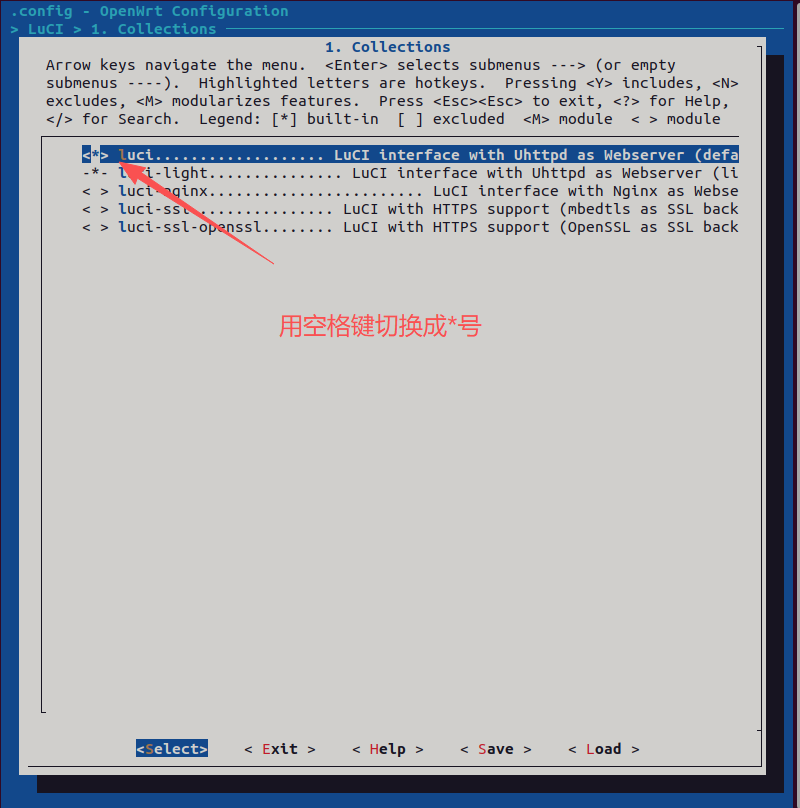

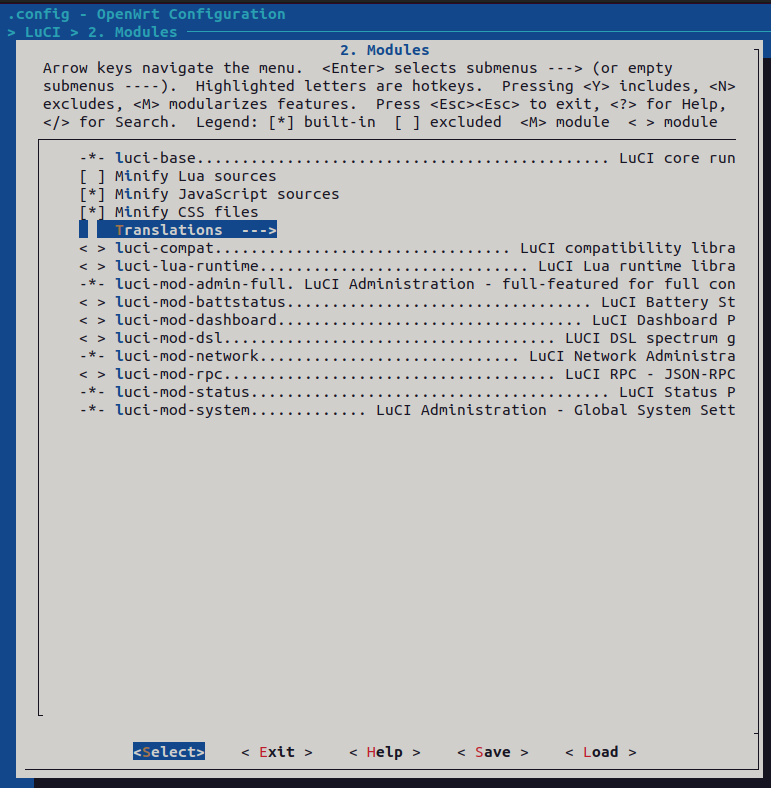

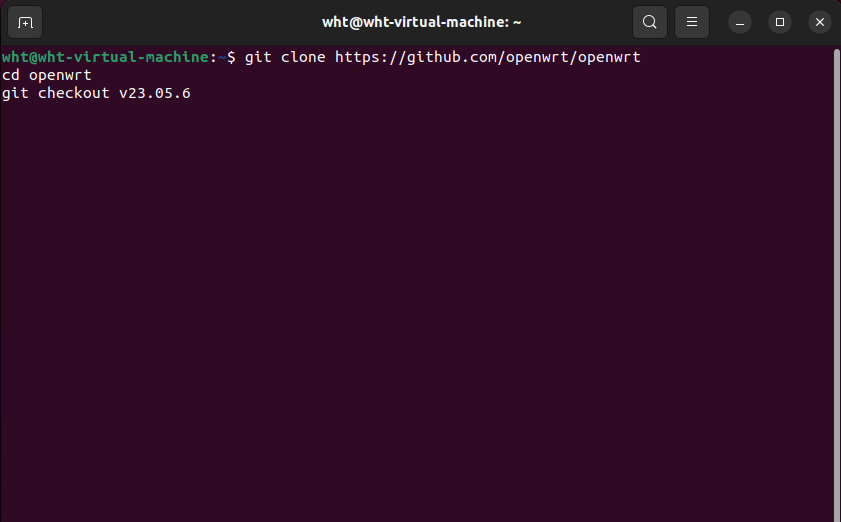

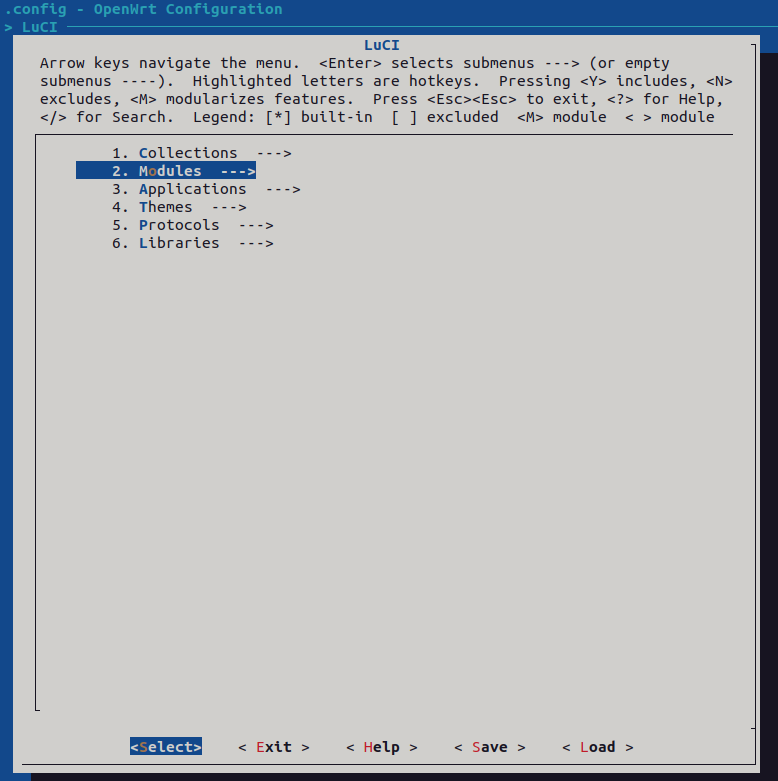

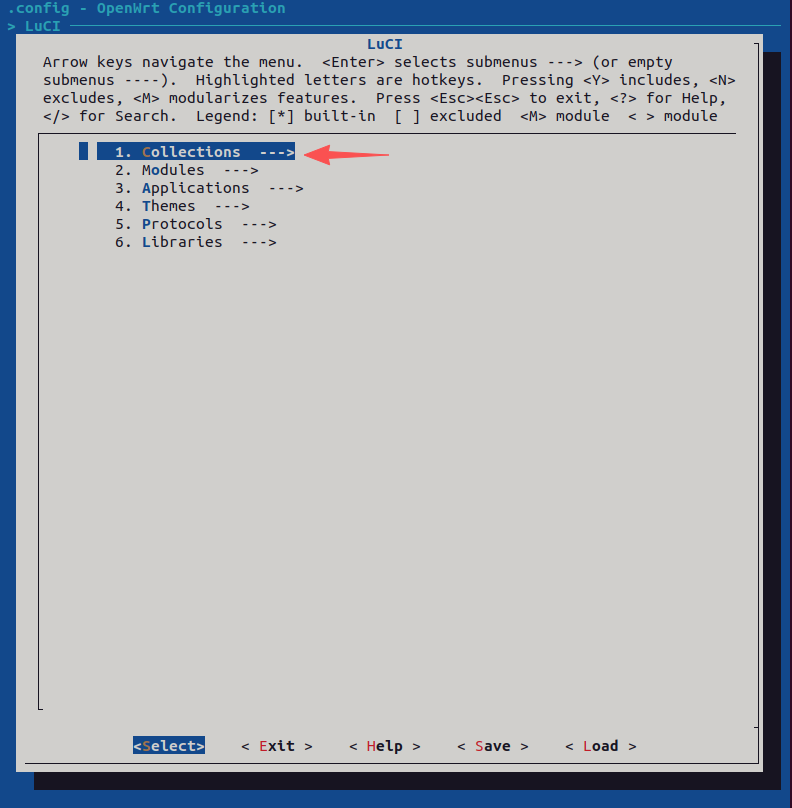

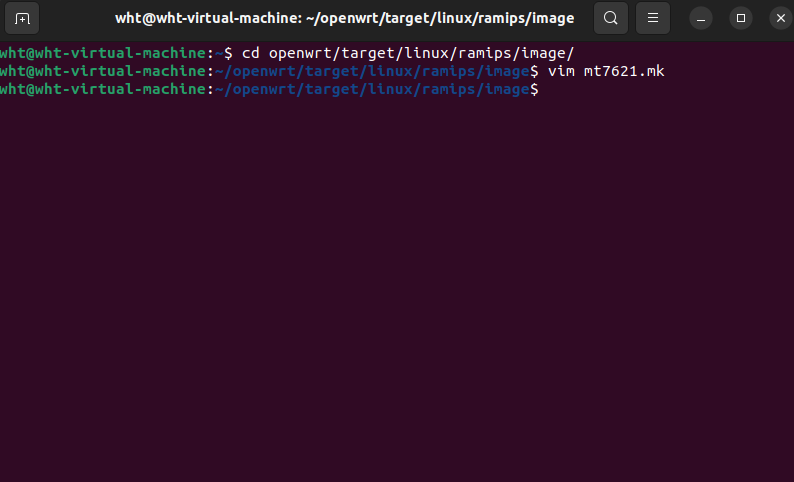

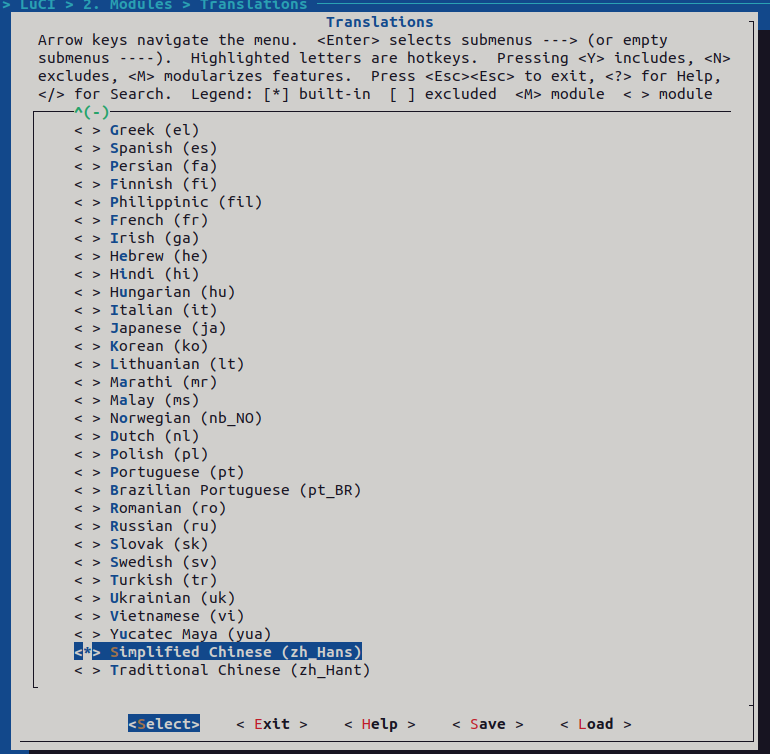

// SPDX-License-Identifier: GPL-2.0-or-later OR MIT
/dts-v1/;
#include "mt7621.dtsi"
#include <dt-bindings/gpio/gpio.h>
#include <dt-bindings/input/input.h>
/ {

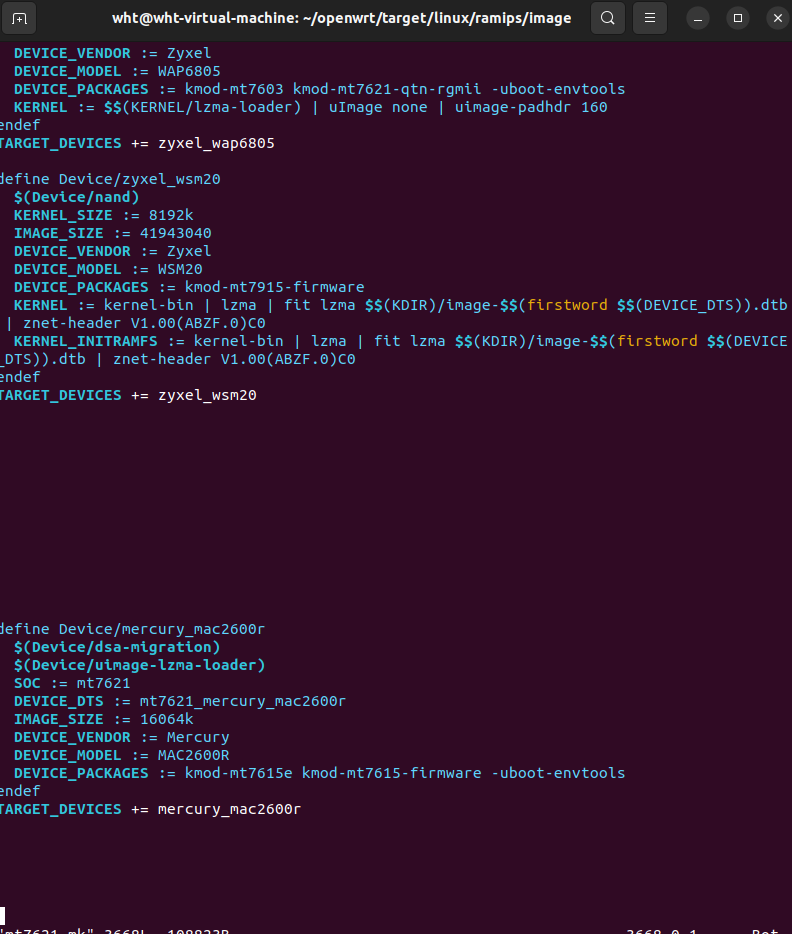

compatible = "mercury,mac2600r", "mediatek,mt7621-soc";

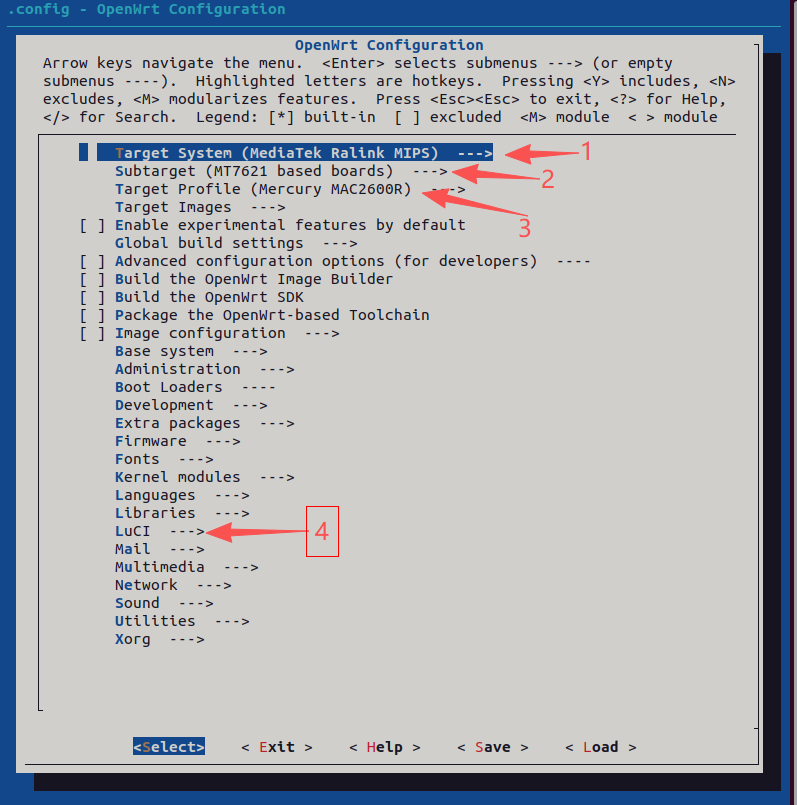

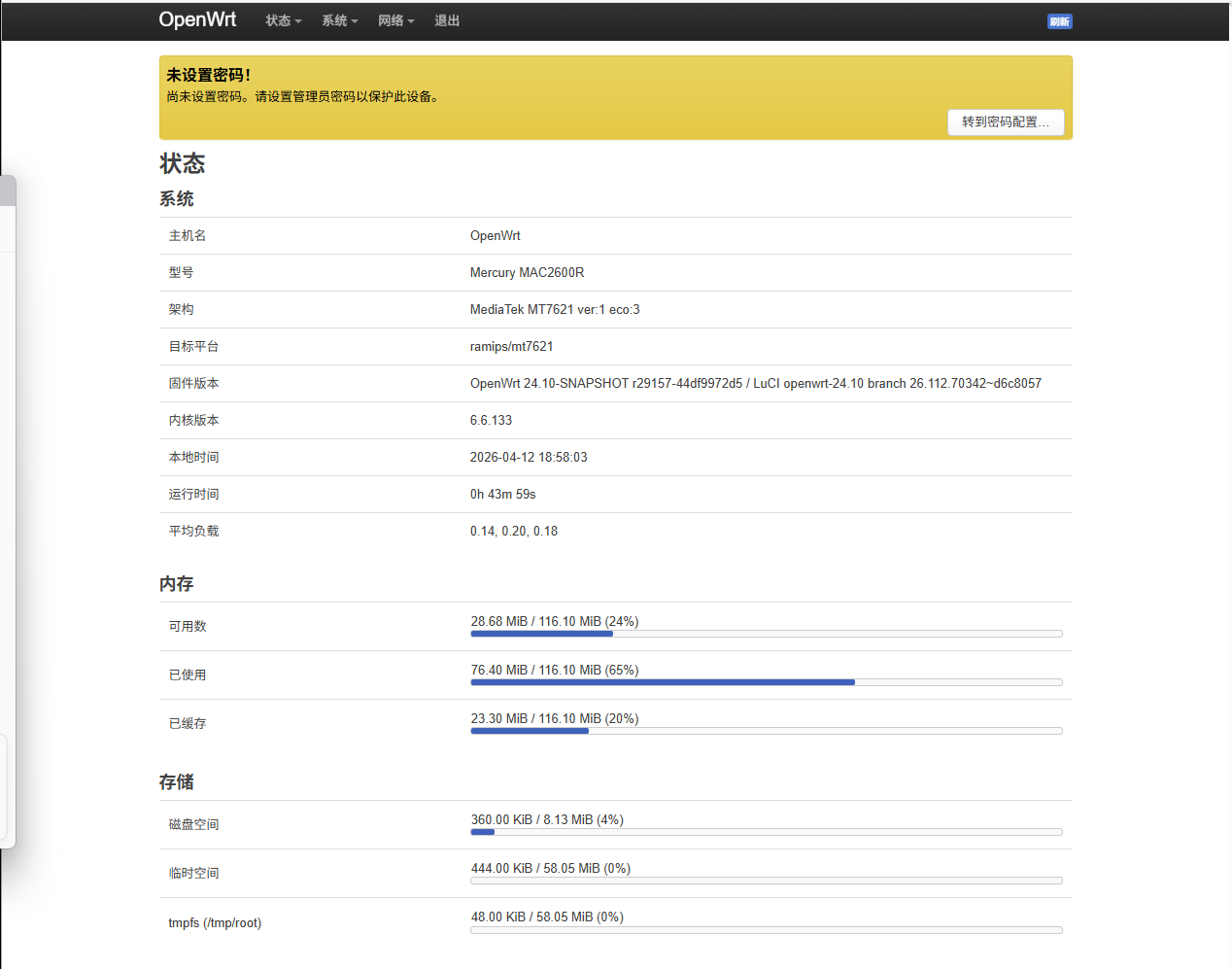

model = "Mercury MAC2600R";
aliases {
led-boot = &led_power;
led-failsafe = &led_power;
led-running = &led_power;
led-upgrade = &led_power;
};
chosen {

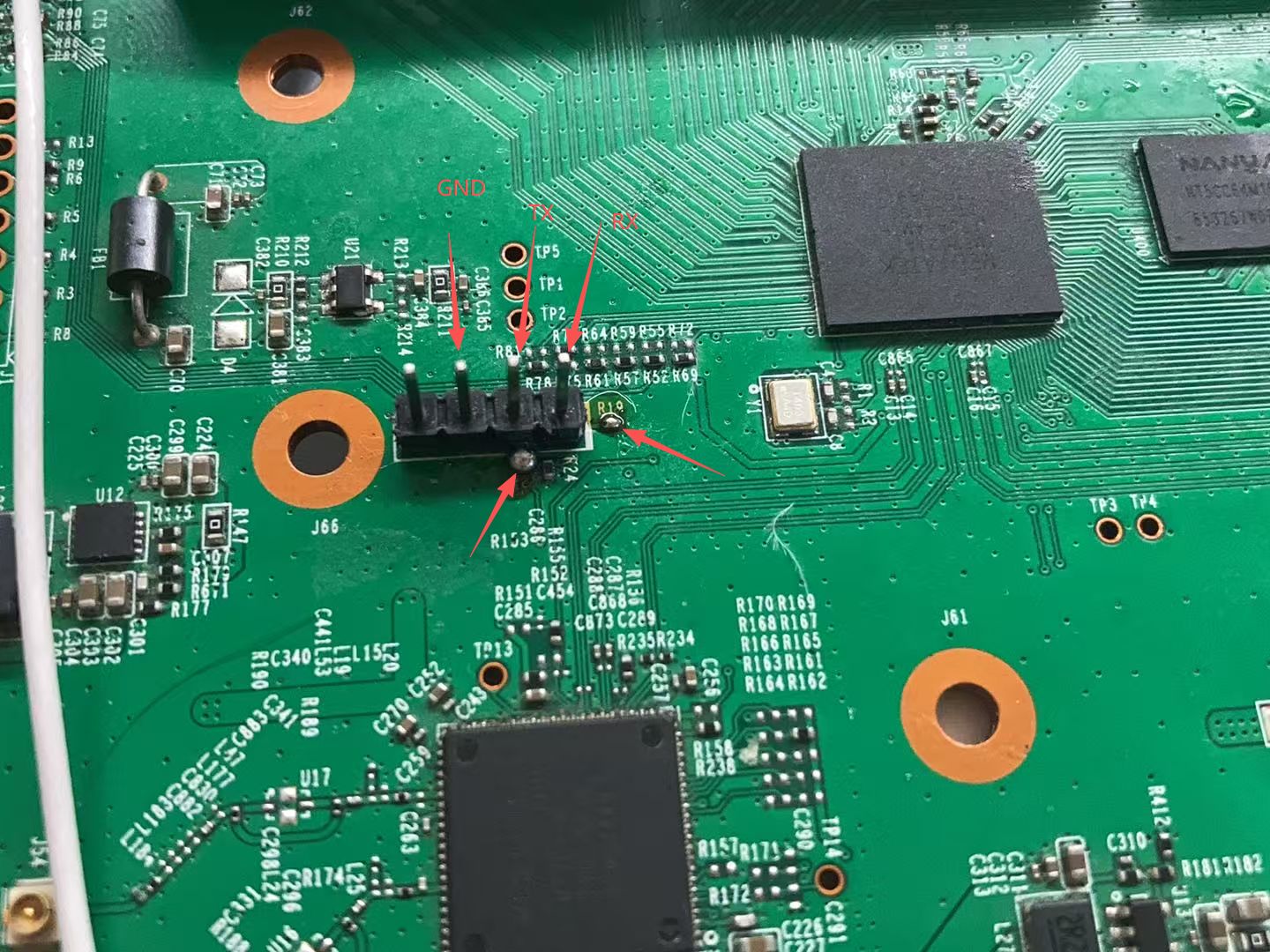

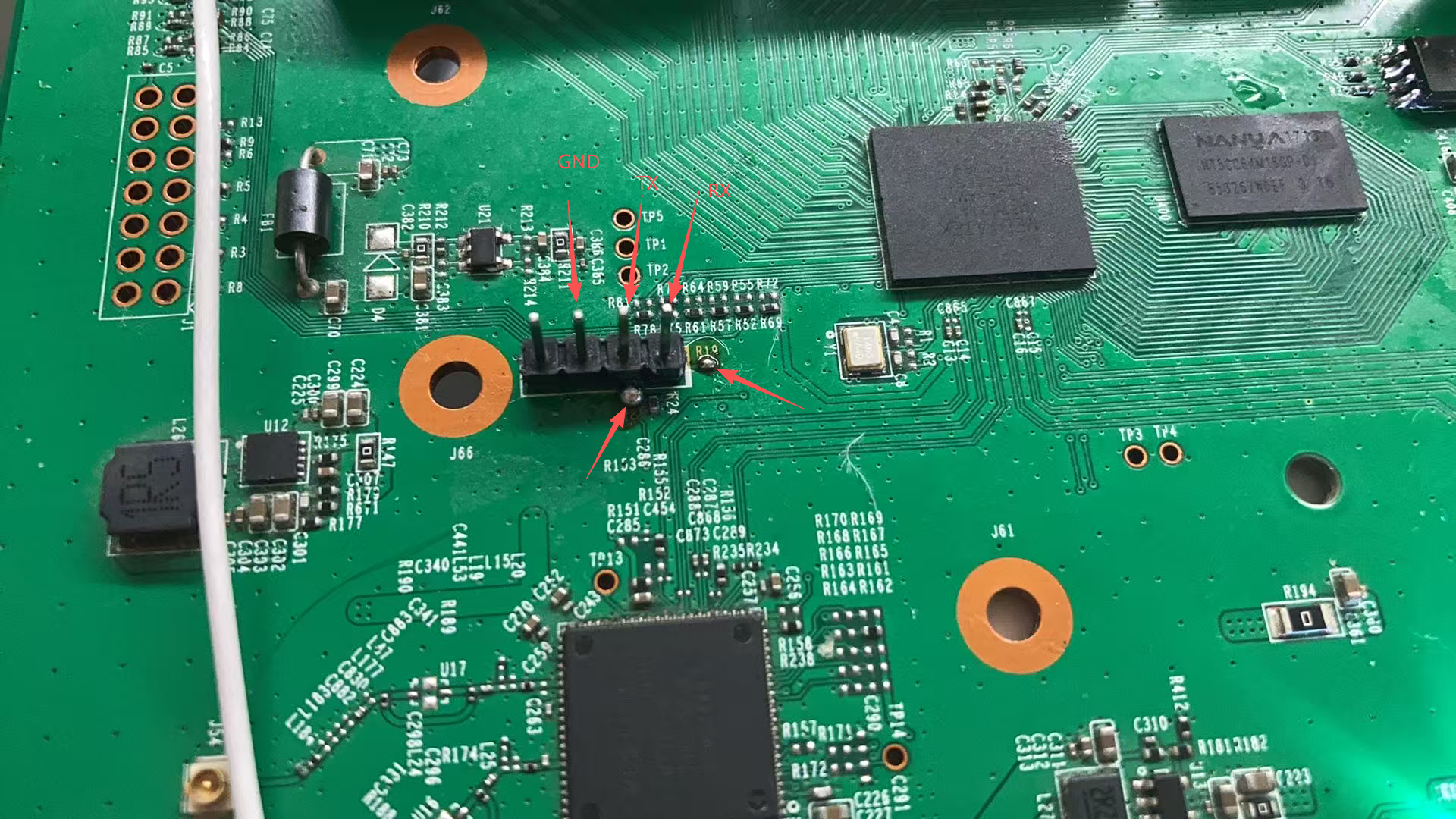

bootargs = "console=ttyS0,115200";
};
leds {
compatible = "gpio-leds";
led_power: power {
label = "green:power";
gpios = <&gpio 25 GPIO_ACTIVE_LOW>;
};
};
keys {
compatible = "gpio-keys";
reset {
label = "reset";
gpios = <&gpio 8 GPIO_ACTIVE_LOW>;
linux,code = <KEY_RESTART>;
};
};
};
&spi0 {
status = "okay";

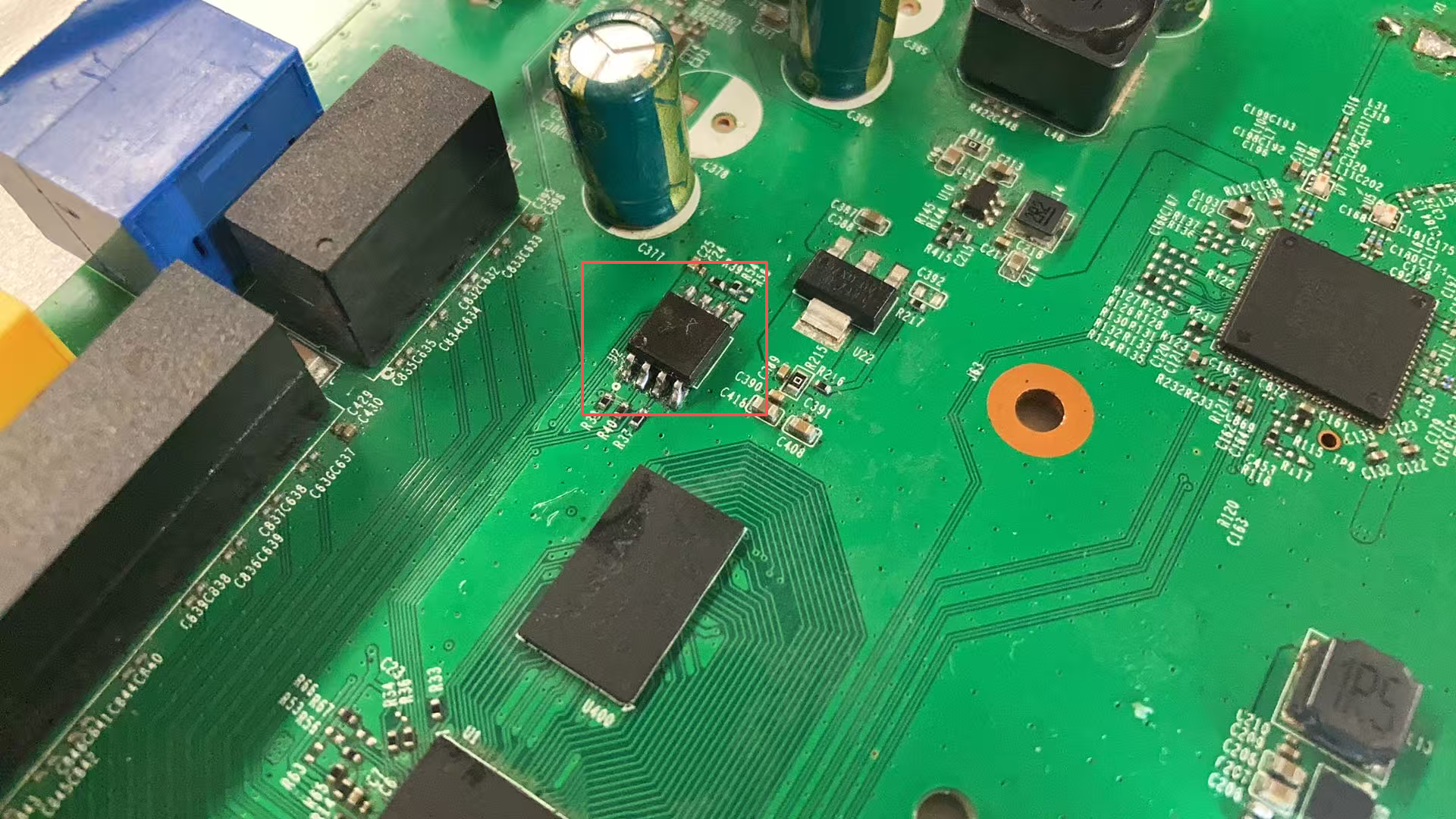

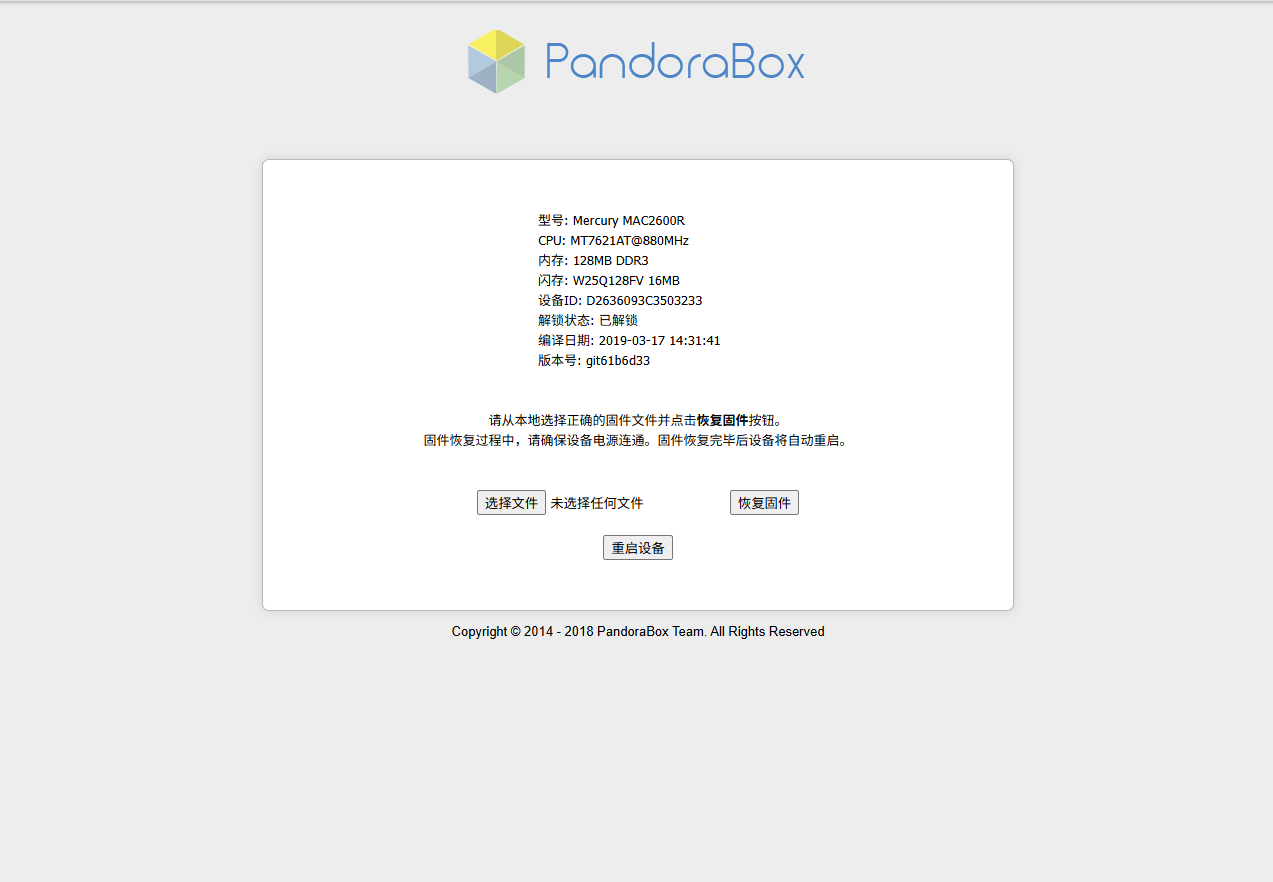

flash@0 {
compatible = "jedec,spi-nor";
reg = <0>;
spi-max-frequency = <80000000>;
partitions {
compatible = "fixed-partitions";
#address-cells = <1>;
#size-cells = <1>;
partition@0 {
label = "u-boot";
reg = <0x0 0x30000>;
read-only;
};
partition@30000 {
label = "u-boot-env";
reg = <0x30000 0x10000>;
read-only;
};
factory: partition@40000 {
label = "factory";
reg = <0x40000 0x10000>;
read-only;
};
partition@50000 {
compatible = "denx,uimage";
label = "firmware";
reg = <0x50000 0xfa0000>;
};
partition@ff0000 {
label = "config";
reg = <0xff0000 0x10000>;
};
};
};
};
&pcie {
status = "okay";
};
&pcie0 {
wifi@0,0 {
compatible = "mediatek,mt76";
reg = <0x0000 0 0 0 0>;
mediatek,mtd-eeprom = <&factory 0x0>;
nvmem-cells = <&base_mac>;
nvmem-cell-names = "mac-address";
mac-address-increment = <2>;
ieee80211-freq-limit = <2400000 2500000>;
};
};
&pcie1 {
wifi@0,0 {
compatible = "mediatek,mt76";
reg = <0x0000 0 0 0 0>;
mediatek,mtd-eeprom = <&factory 0x8000>;
nvmem-cells = <&base_mac>;
nvmem-cell-names = "mac-address";
mac-address-increment = <3>;
ieee80211-freq-limit = <5000000 6000000>;
};
};
ðernet {
pinctrl-0 = <&mdio_pins>, <&rgmii1_pins>;
};
&gmac0 {
nvmem-cells = <&base_mac>;
nvmem-cell-names = "mac-address";
};
&switch0 {
ports {
port@0 {
status = "okay";
label = "wan";
nvmem-cells = <&base_mac>;
nvmem-cell-names = "mac-address";
mac-address-increment = <1>;
};
port@1 {
status = "okay";
label = "lan1";
};
port@2 {
status = "okay";
label = "lan2";
};
port@3 {
status = "okay";
label = "lan3";
};
port@4 {
status = "okay";
label = "lan4";
};
// 端口6是CPU端口，连接GMAC0，必须有
port@6 {
status = "okay";
label = "cpu";
ethernet = <&gmac0>;
reg = <6>;
phy-mode = "trgmii";
fixed-link {
speed = <1000>;
full-duplex;
};
};
};
};
&state_default {
gpio {
groups = "i2c", "uart3";
function = "gpio";
};
};
&factory {
compatible = "nvmem-cells";
#address-cells = <1>;
#size-cells = <1>;
base_mac: macaddr@e000 {
reg = <0xe000 0x6>;
};
};
